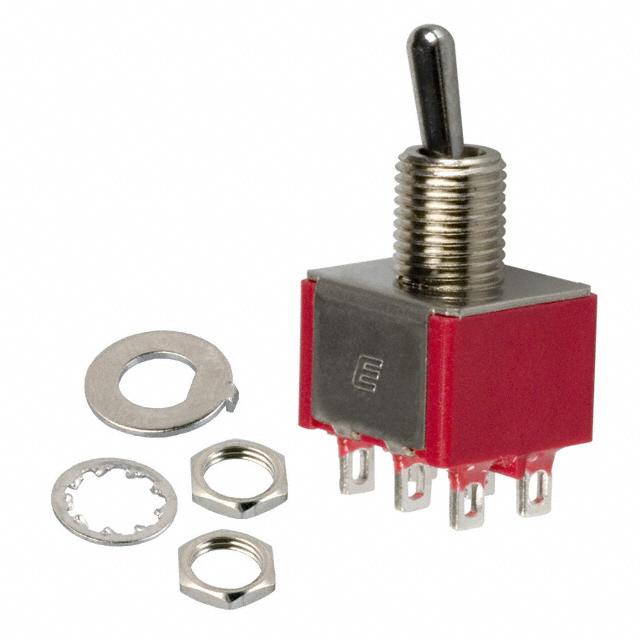

100DP1T2B3M1QEH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 100DP1T2B3M1QEH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 100DP1T2B3M1QEH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 100DP1T2B3M1QEH |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TOGGLE DPDT 5A 120V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.178 | $1.131 | $1.081 | $1.032 | $0.934 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.86 | $0.786 | $0.688 | $0.664 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 100DP1T2B3M1QEH | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 5A 120V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53027 pcs | Data sheet | 100 Series Datasheet100DP1T2B3M1QEH Drawing |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 120V | Termination Style | Solder Lug |
| Switch Function | On-On | Series | 100 |
| Panel Cutout Dimensions | Circular - 6.35mm Dia | Packaging | Bulk |
| Other Names | 100DP1T2B3M1QE EG2403 T121042 |
Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Epoxy Sealed Terminals | Electrical Life | 40,000 Cycles |
| Detailed Description | Toggle Switch DPDT Panel Mount | Current Rating | 5A (AC/DC) |
| Circuit | DPDT | Bushing Thread | 1/4-40 |
| Actuator Type | Standard Round | Actuator Material | Brass, Chrome Plated |
| Actuator Length | 6.86mm |
