100AWDP1T2B4M2QE

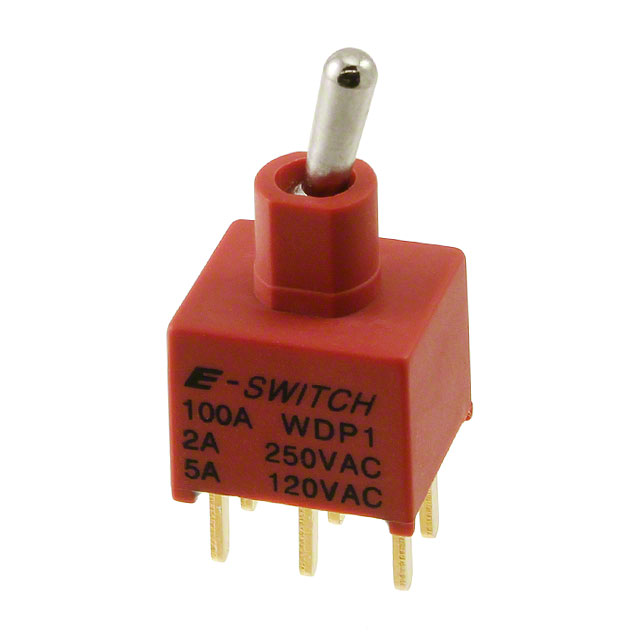

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 100AWDP1T2B4M2QE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 100AWDP1T2B4M2QE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 100AWDP1T2B4M2QE |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TOGGLE DPDT 5A 120V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.348 | $1.292 | $1.235 | $1.179 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.067 | $0.983 | $0.899 | $0.786 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 100AWDP1T2B4M2QE | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 5A 120V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49777 pcs | Data sheet | 100A Series Datasheet100AWDP1T2B4M2QE Drawing |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 120V | Termination Style | PC Pin |
| Switch Function | On-On | Series | 100A |
| Panel Cutout Dimensions | - | Packaging | Bulk |
| Operating Temperature | -30°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Epoxy Sealed Terminals |
| Electrical Life | 30,000 Cycles | Detailed Description | Toggle Switch DPDT Through Hole |
| Current Rating | 5A (AC/DC) | Circuit | DPDT |
| Bushing Thread | Unthreaded | Actuator Type | Standard Round |
| Actuator Material | Brass, Chrome Plated | Actuator Length | 7.62mm |
