100AWDP1T1B4M2RE

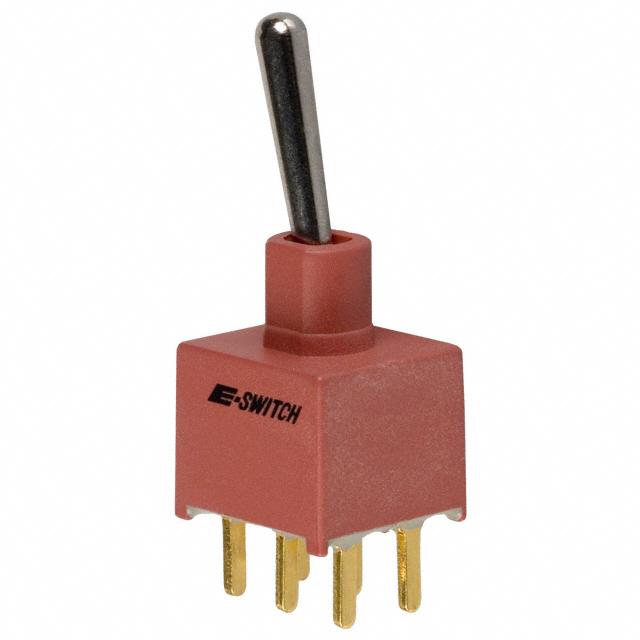

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 100AWDP1T1B4M2RE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 100AWDP1T1B4M2RE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 100AWDP1T1B4M2RE |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TOGGLE DPDT 0.4VA 20V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.504 | $1.441 | $1.378 | $1.316 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.191 | $1.097 | $1.003 | $0.877 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 100AWDP1T1B4M2RE | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 0.4VA 20V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34384 pcs | Data sheet | 100AWDP1T1B4M2RE Drawing |
| Category | Switches | Voltage Rating - DC | 20V |
| Voltage Rating - AC | 20V | Termination Style | PC Pin |
| Switch Function | On-On | Series | 100A |
| Panel Cutout Dimensions | - | Packaging | Bulk |
| Other Names | EG2443 T102102 |
Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Epoxy Sealed Terminals | Electrical Life | 30,000 Cycles |
| Detailed Description | Toggle Switch DPDT Through Hole | Current Rating | 0.4VA (AC/DC) |
| Circuit | DPDT | Bushing Thread | Unthreaded |
| Actuator Type | Standard Round | Actuator Material | Brass, Chrome Plated |
| Actuator Length | 12.70mm |
