PI5A4684GAEX

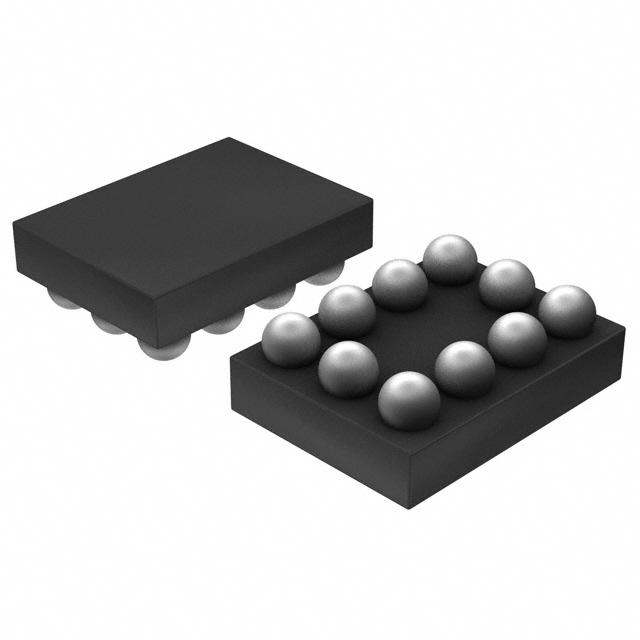

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI5A4684GAEX with confidence from Components-World.HK, 1 Year Warranty
Dowload PI5A4684GAEX Details in PDFSee Product Specifications for product details.
Buy PI5A4684GAEX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PI5A4684GAEX |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC SWITCH DUAL SPDT 10CSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PI5A4684GAEX | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | IC SWITCH DUAL SPDT 10CSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4384 pcs | Data sheet | PI5A4684 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 1.8 V ~ 5.5 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 60ns, 20ns |
| Switch Circuit | SPDT | Supplier Device Package | 10-CSP (1.55x2.07) |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFBGA, CSPBGA | Other Names | PI5A4684GAEXTR |
| Operating Temperature | -40°C ~ 85°C (TA) | On-State Resistance (Max) | 600 mOhm |
| Number of Circuits | 2 | Multiplexer/Demultiplexer Circuit | 2:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2 Circuit IC Switch 2:1 600 mOhm 10-CSP (1.55x2.07) | Current - Leakage (IS(off)) (Max) | 80nA |
| Crosstalk | -70dB @ 100kHz | Charge Injection | 54pC |
| Channel-to-Channel Matching (ΔRon) | 10 mOhm | Channel Capacitance (CS(off), CD(off)) | 84pF |
| Base Part Number | PI5A4684 | -3db Bandwidth | 27MHz |
