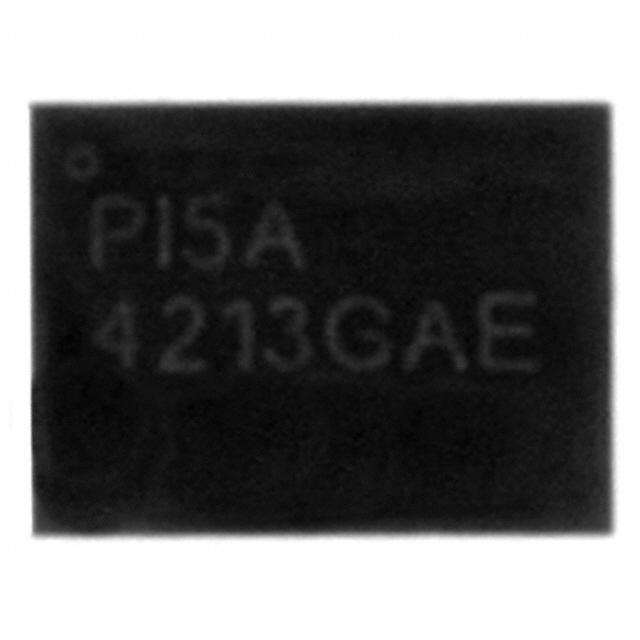

PI5A4213GAEX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI5A4213GAEX with confidence from Components-World.HK, 1 Year Warranty
Dowload PI5A4213GAEX Details in PDFSee Product Specifications for product details.
Buy PI5A4213GAEX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PI5A4213GAEX |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC SWITCH DUAL SP3T 12CSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PI5A4213GAEX | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | IC SWITCH DUAL SP3T 12CSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4047 pcs | Data sheet | PI5A4213 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 1.65 V ~ 5.5 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 15ns, 12ns |
| Switch Circuit | SP3T | Supplier Device Package | 12-CSP (2.0x1.5) |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFBGA, WLCSP | Other Names | PI5A4213GAEXTR |
| Operating Temperature | -40°C ~ 85°C (TA) | On-State Resistance (Max) | 2 Ohm |
| Number of Circuits | 2 | Multiplexer/Demultiplexer Circuit | 3:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2 Circuit IC Switch 3:1 2 Ohm 12-CSP (2.0x1.5) | Current - Leakage (IS(off)) (Max) | 80nA |
| Crosstalk | -72dB @ 100kHz | Charge Injection | 35pC |
| Channel-to-Channel Matching (ΔRon) | 100 mOhm (Max) | Channel Capacitance (CS(off), CD(off)) | 50pF |
| Base Part Number | PI5A4213 | -3db Bandwidth | 30MHz |
