Home > Products > Integrated Circuits (ICs) > Interface - Signal Buffers, Repeaters, Splitters > PI2EQX5904NJEX

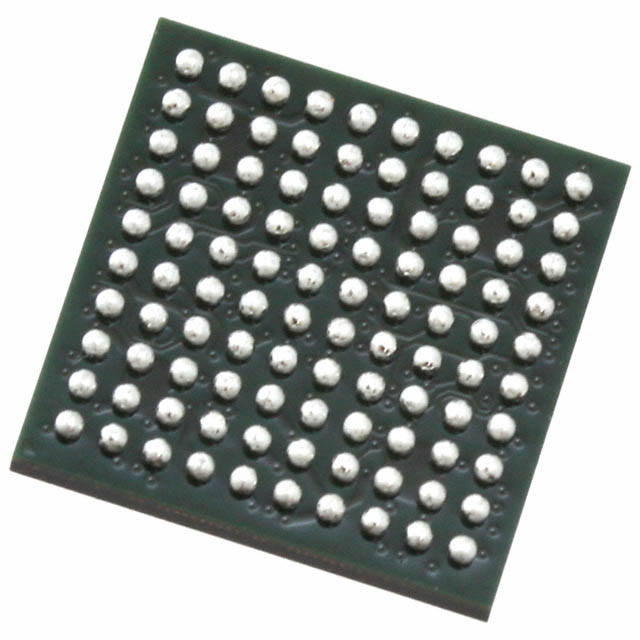

PI2EQX5904NJEX

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI2EQX5904NJEX with confidence from Components-World.HK, 1 Year Warranty

Dowload PI2EQX5904NJEX Details in PDF

Request a Quote

Part Number	PI2EQX5904NJEX
Manufacturer	Diodes Incorporated
Description	IC REDRIVER PCIE 4CH 100LBGA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 11402 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$3.408

Product parameter
Data sheet

Product parameter

Part Number	PI2EQX5904NJEX	Manufacturer	Diodes Incorporated
Description	IC REDRIVER PCIE 4CH 100LBGA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11402 pcs	Data sheet	PI2EQX5904 Databrief
Category	Integrated Circuits (ICs)	Voltage - Supply	1.2V
Type	Buffer, ReDriver	Supplier Device Package	100-LBGA (11x11)
Signal Conditioning	Input Equalization, Output De-Emphasis	Series	PCI Express®(PCIe), ReDriver™
Packaging	Tape & Reel (TR)	Package / Case	100-LBGA
Output	CML	Other Names	PI2EQX5904NJEX-ND PI2EQX5904NJEXDITR
Operating Temperature	-40°C ~ 85°C	Number of Channels	8
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input	CML
Detailed Description	Buffer, ReDriver 8 Channel 5Gbps 100-LBGA (11x11)	Delay Time	750ps
Data Rate (Max)	5Gbps	Current - Supply	800mA
Base Part Number	PI2EQX5904	Applications	PCIe
