Home > Products > Integrated Circuits (ICs) > Interface - Signal Buffers, Repeaters, Splitters > PI2EQX5804CNJEX

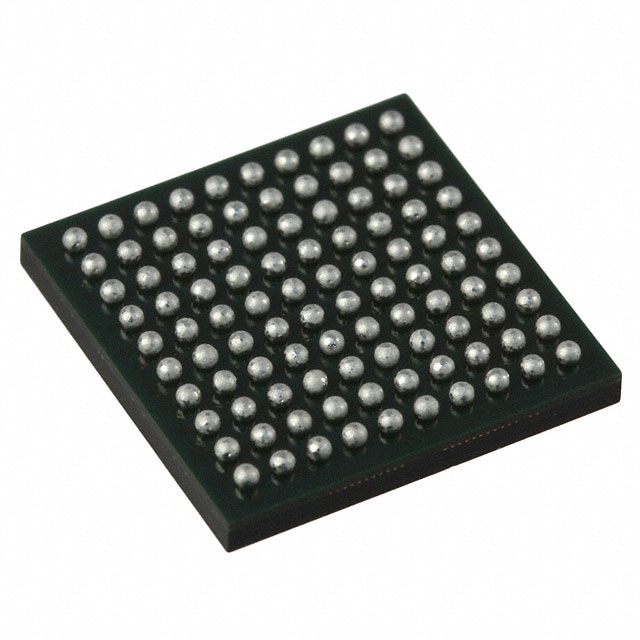

PI2EQX5804CNJEX

PI2EQX5804CNJEX

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI2EQX5804CNJEX with confidence from Components-World.HK, 1 Year Warranty

Dowload PI2EQX5804CNJEX Details in PDF

Request a Quote

Part Number	PI2EQX5804CNJEX
Manufacturer	Diodes Incorporated
Description	IC REDRIVER PCIE 4CH 100LBGA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4892 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	PI2EQX5804CNJEX	Manufacturer	Diodes Incorporated
Description	IC REDRIVER PCIE 4CH 100LBGA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4892 pcs	Data sheet	PI2EQX5804C
Category	Integrated Circuits (ICs)	Voltage - Supply	1.2V
Type	Buffer, ReDriver	Supplier Device Package	100-LBGA (11x11)
Signal Conditioning	Input Equalization, Output De-Emphasis	Series	ReDriver™
Packaging	Tape & Reel (TR)	Package / Case	100-LBGA
Output	CML	Operating Temperature	0°C ~ 70°C
Number of Channels	4	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input	CML
Detailed Description	Buffer, ReDriver 4 Channel 5Gbps 100-LBGA (11x11)	Delay Time	750ps
Data Rate (Max)	5Gbps	Current - Supply	800mA
Capacitance - Input	50pF	Base Part Number	PI2EQX5804
Applications	PCIe
