PAM8014AZR

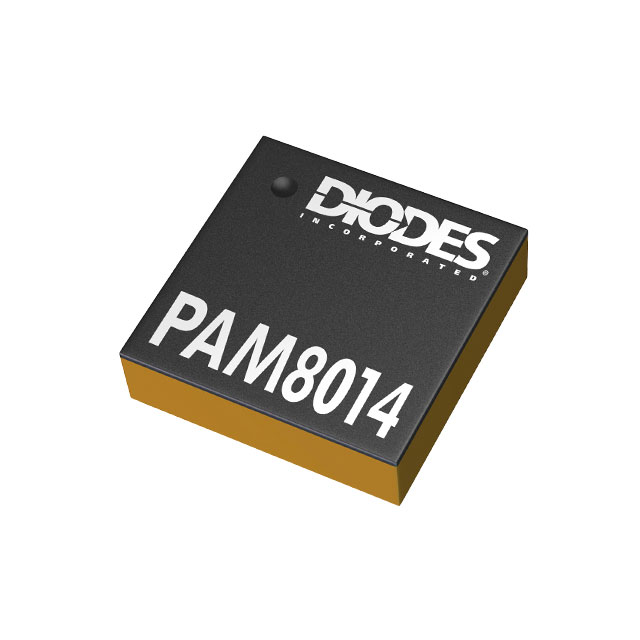

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PAM8014AZR with confidence from Components-World.HK, 1 Year Warranty
Dowload PAM8014AZR Details in PDFSee Product Specifications for product details.
Buy PAM8014AZR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PAM8014AZR |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC AUDIO AMP CLASS D U-WLB1313-9 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.196 | $0.168 | $0.126 | $0.099 | $0.076 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PAM8014AZR | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | IC AUDIO AMP CLASS D U-WLB1313-9 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 251918 pcs | Data sheet | PAM8014 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 2.5 V ~ 5.5 V |
| Type | Class D | Supplier Device Package | U-WLB1313-9 |
| Series | - | Packaging | Cut Tape (CT) |
| Package / Case | 9-UFBGA, WLBGA | Output Type | 1-Channel (Mono) |
| Other Names | PAM8014AZRDICT | Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Max Output Power x Channels @ Load | 3.2W x 1 @ 4 Ohm | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Depop, Short-Circuit and Thermal Protection, Shutdown |
| Detailed Description | Amplifier IC 1-Channel (Mono) Class D U-WLB1313-9 |
