PAM8012AZN

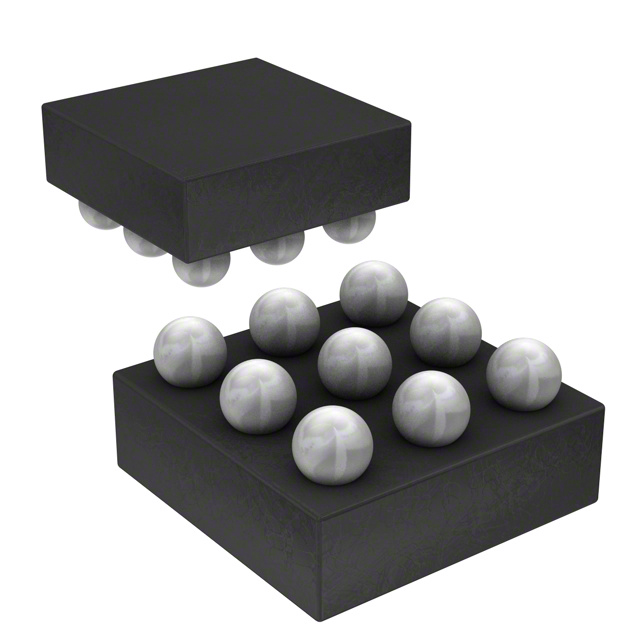

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PAM8012AZN with confidence from Components-World.HK, 1 Year Warranty
Dowload PAM8012AZN Details in PDFSee Product Specifications for product details.
Buy PAM8012AZN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PAM8012AZN |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC AMP AUDIO 2W CLASS D 9WCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | |
|---|---|---|---|---|---|
| $0.068 | $0.063 | $0.059 | $0.056 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PAM8012AZN | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | IC AMP AUDIO 2W CLASS D 9WCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 375280 pcs | Data sheet | PAM8012AZN |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 2.5 V ~ 5.5 V |
| Type | Class D | Supplier Device Package | 9-WCSP |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 9-UFBGA, WLCSP | Output Type | 1-Channel (Mono) |
| Other Names | PAM8012AZNDI PAM8012AZNDI-ND PAM8012AZNDITR |
Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Max Output Power x Channels @ Load | 2W x 1 @ 4 Ohm | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Depop, Short-Circuit and Thermal Protection |
| Detailed Description | Amplifier IC 1-Channel (Mono) Class D 9-WCSP | Base Part Number | PAM8012 |
