Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Single > DGTD65T15H2TF

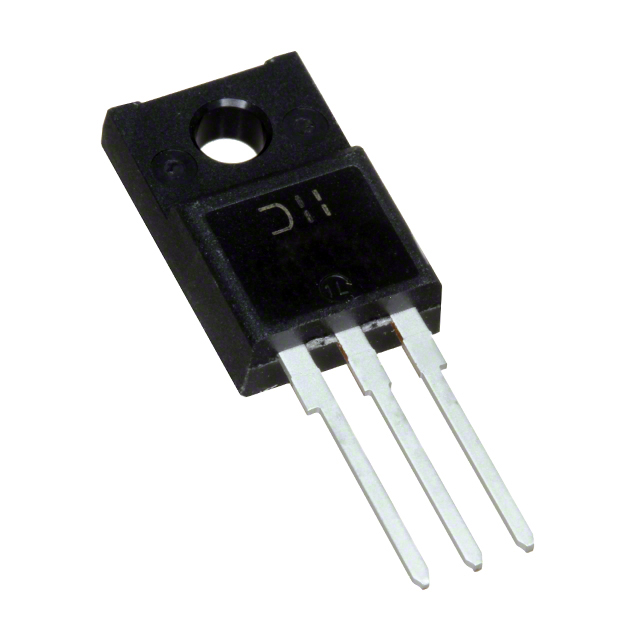

DGTD65T15H2TF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DGTD65T15H2TF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DGTD65T15H2TF
Manufacturer	Diodes Incorporated
Description	IGBT600V-XITO-220AB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 66295 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.614	$0.551	$0.443	$0.364	$0.302

Product parameter
Data sheet

Product parameter

Part Number	DGTD65T15H2TF	Manufacturer	Diodes Incorporated
Description	IGBT600V-XITO-220AB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66295 pcs	Data sheet	DGTD65T15H2TF
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	650V
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 15A	Test Condition	400V, 15A, 10 Ohm, 15V
Td (on/off) @ 25°C	19ns/128ns	Switching Energy	270µJ (on), 86µJ (off)
Supplier Device Package	ITO-220AB	Series	-
Reverse Recovery Time (trr)	150ns	Power - Max	48W
Package / Case	TO-220-3 Full Pack, Isolated Tab	Other Names	DGTD65T15H2TFDI
Operating Temperature	-40°C ~ 175°C (TJ)	Mounting Type	Through Hole
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	Field Stop
Gate Charge	61nC	Detailed Description	IGBT Field Stop 650V 30A 48W Through Hole ITO-220AB
Current - Collector Pulsed (Icm)	60A	Current - Collector (Ic) (Max)	30A
