AP3015KTR-G1

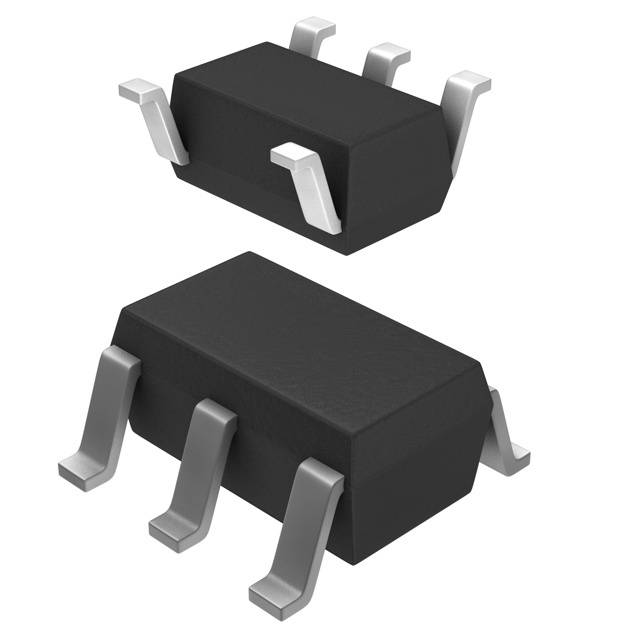

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AP3015KTR-G1 with confidence from Components-World.HK, 1 Year Warranty
Dowload AP3015KTR-G1 Details in PDFSee Product Specifications for product details.
Buy AP3015KTR-G1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AP3015KTR-G1 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC REG BOOST ADJ 0.3A SOT25 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.257 | $0.227 | $0.174 | $0.138 | $0.11 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | AP3015KTR-G1 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | IC REG BOOST ADJ 0.3A SOT25 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 214798 pcs | Data sheet | AP3015(A) Series |
| Category | Integrated Circuits (ICs) | Voltage - Output (Min/Fixed) | 1.23V |
| Voltage - Output (Max) | 34V | Voltage - Input (Min) | 1.2V |
| Voltage - Input (Max) | 12V | Topology | Boost |
| Synchronous Rectifier | No | Supplier Device Package | SOT-23-5 |
| Series | - | Packaging | Cut Tape (CT) |
| Package / Case | SC-74A, SOT-753 | Output Type | Adjustable |
| Output Configuration | Positive | Other Names | AP3015KTR-G1DICT |
| Operating Temperature | -40°C ~ 85°C (TA) | Number of Outputs | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Up | Frequency - Switching | 150kHz |
| Detailed Description | Boost Switching Regulator IC Positive Adjustable 1.23V 1 Output 300mA (Switch) SC-74A, SOT-753 | Current - Output | 300mA (Switch) |
