DA14681-01000U22

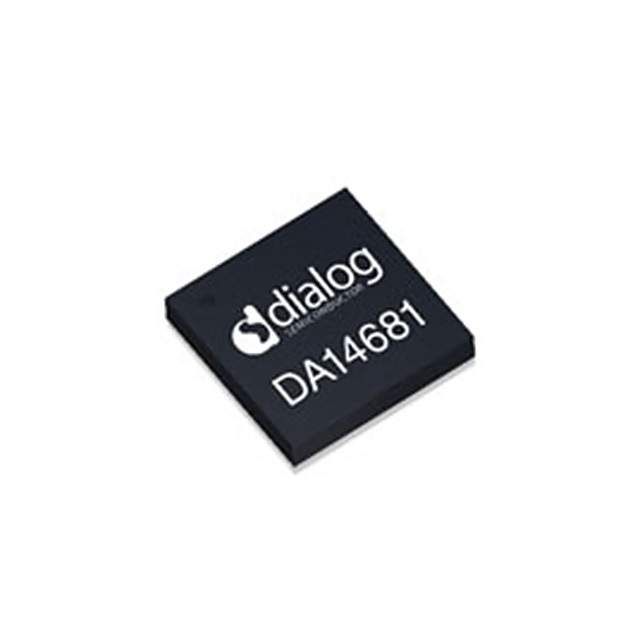

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DA14681-01000U22 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DA14681-01000U22 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DA14681-01000U22 |
|---|---|
| Manufacturer | Dialog Semiconductor |
| Description | IC RX TXRX+MCU BLUETOOTH 53WLCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.632 | $1.458 | $1.312 | $1.196 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.079 | $0.968 | $0.817 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DA14681-01000U22 | Manufacturer | Dialog Semiconductor |
|---|---|---|---|
| Description | IC RX TXRX+MCU BLUETOOTH 53WLCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39033 pcs | Data sheet | DA1468x Brief |
| Category | RF/IF and RFID | Voltage - Supply | 1.7 V ~ 4.5 V |
| Type | TxRx + MCU | Series | SmartBond™ |
| Serial Interfaces | I²C, I²S, PCM, SPI, UART, USB | Sensitivity | -94dBm |
| RF Family/Standard | Bluetooth | Protocol | Bluetooth v4.2 |
| Power - Output | 0dBm | Packaging | Cut Tape (CT) |
| Package / Case | 53-BGA, WLCSP | Other Names | 1564-1035-1 |
| Operating Temperature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Modulation | - | Memory Size | 64kB OTP, 128kB ROM, 144kB SRAM |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency | 2.4GHz | Detailed Description | IC RF TxRx + MCU Bluetooth Bluetooth v4.2 2.4GHz 53-BGA, WLCSP |
| Data Rate (Max) | - | Current - Transmitting | - |
| Current - Receiving | - |
