Home > Products > RF/IF and RFID > RF Transceiver ICs > DA14680-01F08A92

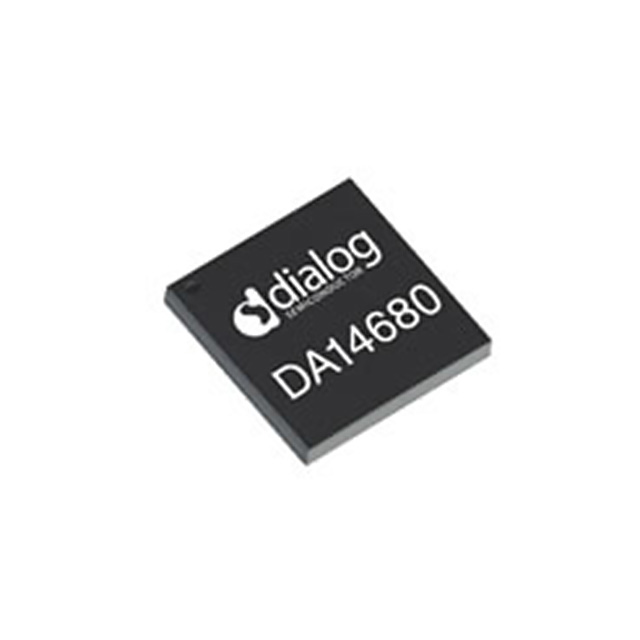

DA14680-01F08A92

DA14680-01F08A92

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DA14680-01F08A92 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DA14680-01F08A92
Manufacturer	Dialog Semiconductor
Description	IC RX TXRX+MCU BLUETOOTH 60AQFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 29478 pcs
Reference Price (In US Dollars)	4000 pcs
Reference Price (In US Dollars)	$1.12

Product parameter
Data sheet

Product parameter

Part Number	DA14680-01F08A92	Manufacturer	Dialog Semiconductor
Description	IC RX TXRX+MCU BLUETOOTH 60AQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29478 pcs	Data sheet	DA1468x Brief
Category	RF/IF and RFID	Voltage - Supply	1.7 V ~ 4.5 V
Type	TxRx + MCU	Series	SmartBond™
Serial Interfaces	I²C, I²S, PCM, SPI, UART, USB	Sensitivity	-94dBm
RF Family/Standard	Bluetooth	Protocol	Bluetooth v4.2
Power - Output	0dBm	Packaging	Tape & Reel (TR)
Package / Case	60-VFQFN	Other Names	1564-1034-2
Operating Temperature	-	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Modulation	-	Memory Size	8Mb Flash, 64kB OTP, 128kB ROM, 144kB SRAM
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	2.4GHz	Detailed Description	IC RF TxRx + MCU Bluetooth Bluetooth v4.2 2.4GHz 60-VFQFN
Data Rate (Max)	-	Current - Transmitting	-
Current - Receiving	-
