Home > Products > RF/IF and RFID > RF Evaluation and Development Kits, Boards > DA14580A3DB-P

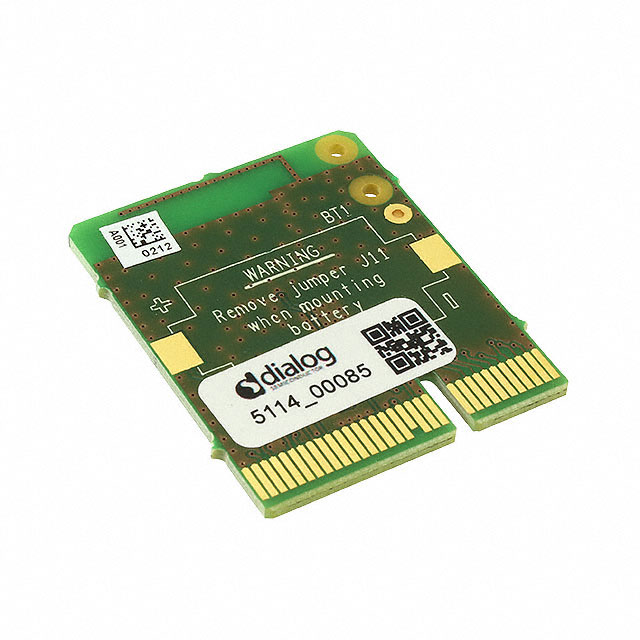

DA14580A3DB-P

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DA14580A3DB-P with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DA14580A3DB-P
Manufacturer	Dialog Semiconductor
Description	PRO DAUGHTERBOARD DA14580 QFN48
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2266 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$16.394

Product parameter
Data sheet

Product parameter

Part Number	DA14580A3DB-P	Manufacturer	Dialog Semiconductor
Description	PRO DAUGHTERBOARD DA14580 QFN48	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2266 pcs	Data sheet	DA14580 Datasheet DA1458x Family Brief
Category	RF/IF and RFID	Type	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)
Supplied Contents	Board(s)	Series	SmartBond™
Other Names	1564-1005	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency	2.4GHz
For Use With/Related Products	DA14580
