DA14580-01UNA

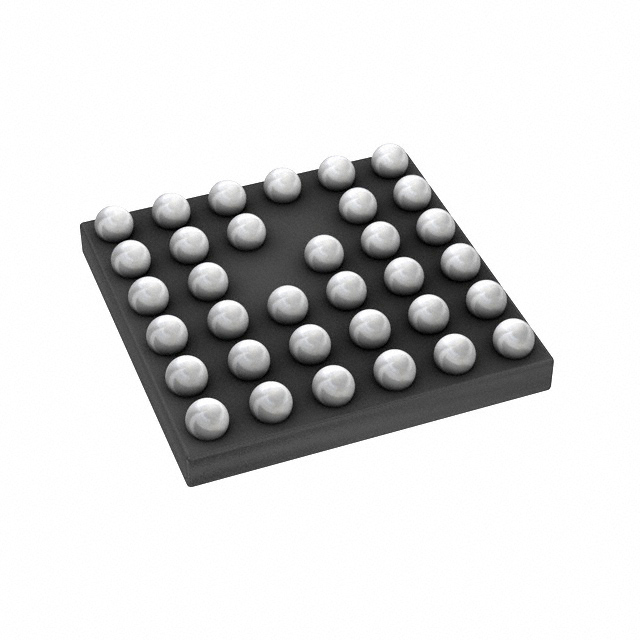

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DA14580-01UNA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DA14580-01UNA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DA14580-01UNA |
|---|---|
| Manufacturer | Dialog Semiconductor |
| Description | IC RF TXRX+MCU BLUETOOTH 34WLCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.451 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DA14580-01UNA | Manufacturer | Dialog Semiconductor |
|---|---|---|---|
| Description | IC RF TXRX+MCU BLUETOOTH 34WLCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66545 pcs | Data sheet | DA14580 DatasheetDA1458x Family Brief |
| Category | RF/IF and RFID | Voltage - Supply | 2.35 V ~ 3.3 V |
| Type | TxRx + MCU | Series | - |
| Serial Interfaces | I²C, SPI, UART | Sensitivity | -93dBm |
| RF Family/Standard | Bluetooth | Protocol | Bluetooth v4.1 |
| Power - Output | -1dBm | Packaging | Tape & Reel (TR) |
| Package / Case | 34-UFBGA, WLCSP | Other Names | 1564-1012-2 |
| Operating Temperature | -40°C ~ 85°C | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Modulation | - | Memory Size | 32kB OTP, 84kB ROM, 50kB SRAM |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| GPIO | 14 | Frequency | 2.4GHz |
| Detailed Description | IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 34-UFBGA, WLCSP | Data Rate (Max) | - |
| Current - Transmitting | 3.4mA | Current - Receiving | 3.7mA |
