Home > Products > Relays > Solid State Relays > UPD2415DF

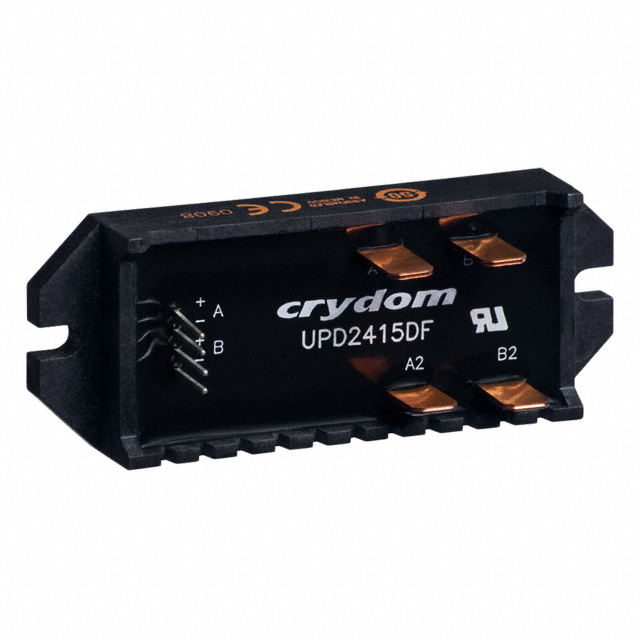

UPD2415DF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UPD2415DF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UPD2415DF
Manufacturer	Crydom
Description	SSR RELAY SPST-NO 15A 24-280V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1746 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$21.884	$20.857	$19.895	$19.318

Product parameter
Data sheet

Product parameter

Part Number	UPD2415DF	Manufacturer	Crydom
Description	SSR RELAY SPST-NO 15A 24-280V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1746 pcs	Data sheet	UPD24D Series UPD2415DF Series Drawing
Category	Relays	Voltage - Load	24V ~ 280V
Voltage - Input	3 ~ 15VDC	Termination Style	Quick Connect - 0.250" (6.3mm)
Supplier Device Package	-	Series	UPD24D
Packaging	Bulk	Package / Case	Module
Output Type	AC, Zero Cross	Other Names	CC1712
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Load Current	15A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Solid State Relay SPST-NO (1 Form A) x 2 Module
Circuit	SPST-NO (1 Form A) x 2
