Home > Products > Relays > Solid State Relays > UPD2415D

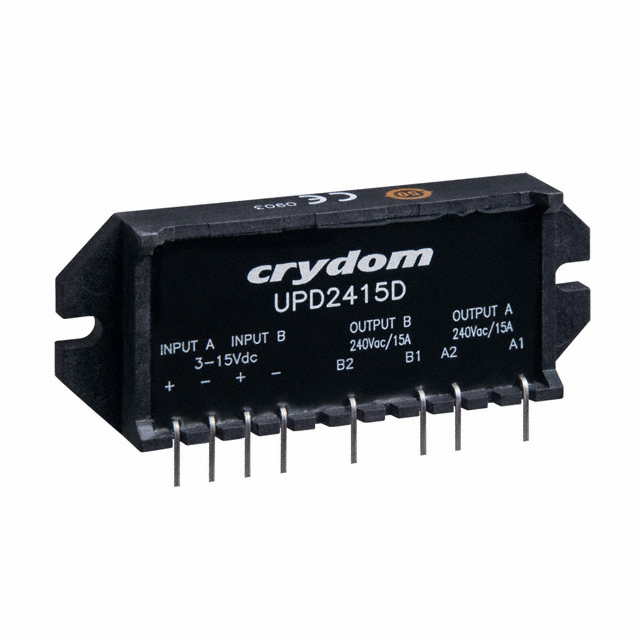

UPD2415D

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UPD2415D with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UPD2415D
Manufacturer	Crydom
Description	SSR RELAY SPST-NO 15A 24-280V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1958 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$21.319	$20.318	$19.381	$18.818

Product parameter
Data sheet

Product parameter

Part Number	UPD2415D	Manufacturer	Crydom
Description	SSR RELAY SPST-NO 15A 24-280V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1958 pcs	Data sheet	UPD24D Series UPD2415D Series Drawing
Category	Relays	Voltage - Load	24V ~ 280V
Voltage - Input	3 ~ 15VDC	Termination Style	PC Pin
Supplier Device Package	6-SIP	Series	UPD24D
Packaging	Bulk	Package / Case	6-SIP
Output Type	AC, Zero Cross	Other Names	CC2316 UPD2415D-ND
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Load Current	15A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Solid State Relay SPST-NO (1 Form A) x 2 6-SIP
Circuit	SPST-NO (1 Form A) x 2
