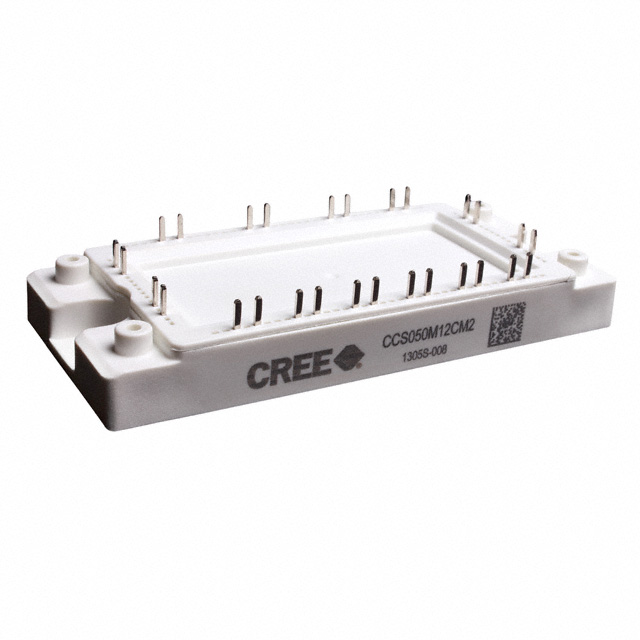

CCS050M12CM2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CCS050M12CM2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CCS050M12CM2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CCS050M12CM2 |
|---|---|
| Manufacturer | Cree Wolfspeed |
| Description | MOSFET 6N-CH 1200V 87A MODULE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $165.317 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CCS050M12CM2 | Manufacturer | Cree Wolfspeed |
|---|---|---|---|
| Description | MOSFET 6N-CH 1200V 87A MODULE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 181 pcs | Data sheet | CCS050M12CM2 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.3V @ 2.5mA |
| Supplier Device Package | Module | Series | Z-FET™ Z-Rec™ |
| Rds On (Max) @ Id, Vgs | 34 mOhm @ 50A, 20V | Power - Max | 337W |
| Packaging | Bulk | Package / Case | Module |
| Operating Temperature | 150°C (TJ) | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 52 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 2.810nF @ 800V |
| Gate Charge (Qg) (Max) @ Vgs | 180nC @ 20V | FET Type | 6 N-Channel (3-Phase Bridge) |
| FET Feature | Silicon Carbide (SiC) | Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Detailed Description | Mosfet Array 6 N-Channel (3-Phase Bridge) 1200V (1.2kV) 87A (Tc) 337W Chassis Mount Module | Current - Continuous Drain (Id) @ 25°C | 87A (Tc) |
