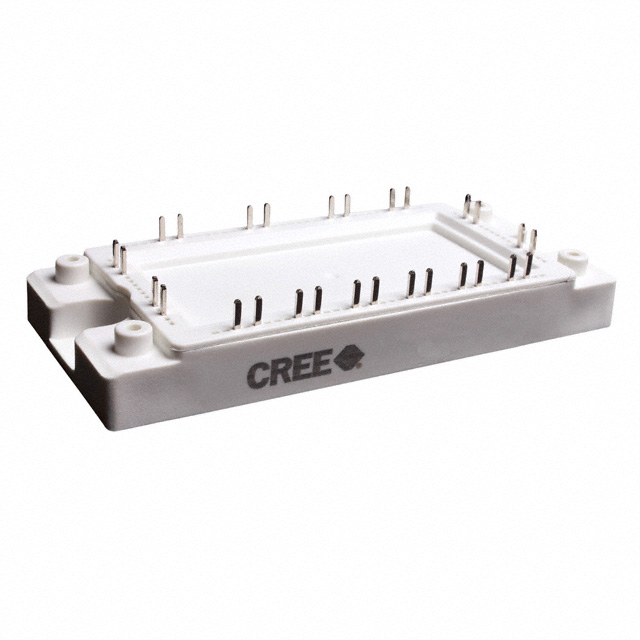

CCS020M12CM2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CCS020M12CM2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CCS020M12CM2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CCS020M12CM2 |
|---|---|
| Manufacturer | Cree Wolfspeed |
| Description | MOSFET 6N-CH 1200V 29.5A MODULE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $71.744 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CCS020M12CM2 | Manufacturer | Cree Wolfspeed |
|---|---|---|---|
| Description | MOSFET 6N-CH 1200V 29.5A MODULE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 466 pcs | Data sheet | CCS020M12CM2 Datasheet |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.2V @ 1mA (Typ) |
| Supplier Device Package | Module | Series | Z-Rec® |
| Rds On (Max) @ Id, Vgs | 98 mOhm @ 20A, 20V | Power - Max | 167W |
| Packaging | Tray | Package / Case | Module |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 52 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 900pF @ 800V |
| Gate Charge (Qg) (Max) @ Vgs | 61.5nC @ 20V | FET Type | 6 N-Channel (3-Phase Bridge) |
| FET Feature | Silicon Carbide (SiC) | Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Detailed Description | Mosfet Array 6 N-Channel (3-Phase Bridge) 1200V (1.2kV) 29.5A (Tc) 167W Chassis Mount Module | Current - Continuous Drain (Id) @ 25°C | 29.5A (Tc) |
