CM15-2249

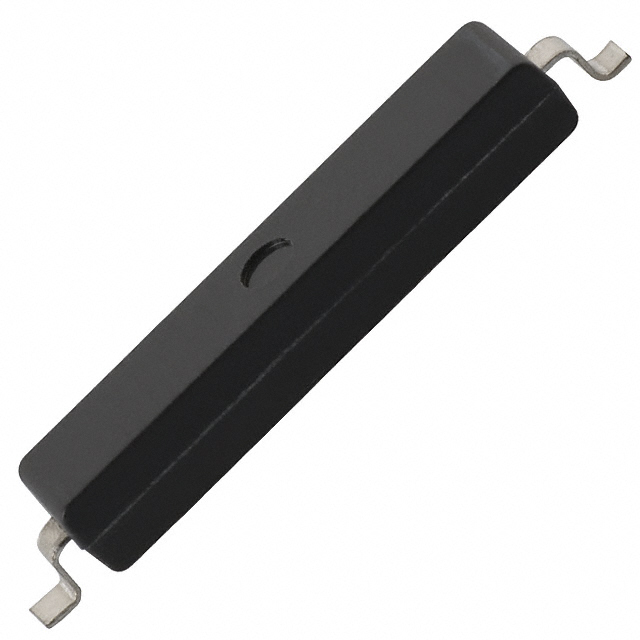

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM15-2249 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM15-2249 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM15-2249 |
|---|---|
| Manufacturer | Coto Technology |
| Description | SWITCH REED SPST-NO 500MA 200V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM15-2249 | Manufacturer | Coto Technology |
|---|---|---|---|
| Description | SWITCH REED SPST-NO 500MA 200V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4346 pcs | Data sheet | Reed Switches Technical, Appl InfoCM15(S) |
| Category | Switches | Voltage - Switching DC | 200V |
| Voltage - Switching AC | 200V | Type | Molded Body |
| Termination Style | Gull Wing | Size - Body | 0.640" L x 0.150" W x 0.106" H (16.25mm x 3.80mm x 2.70mm) |
| Series | CM15 | Release Time | 0.2ms |
| Release Range | - | Power - Rated | 10VA |
| Packaging | Tape & Reel (TR) | Other Names | 420-1045-2 |
| Operating Temperature | -40°C ~ 125°C | Operate Time | 0.5ms |
| Operate Range | 15 ~ 25AT | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Length - Overall | 0.800" (20.32mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.115" (2.92mm) |
| Detailed Description | Molded Body Reed Switch SPST-NO 15 ~ 25AT Operate Range 10VA 500mA (AC/DC) 200V Surface Mount | Current - Switching | 500mA (AC/DC) |
| Current - Carry | 1.5A (AC/DC) | Circuit | SPST-NO |
| Capacitance | 0.3pF |
