CHS120483R3

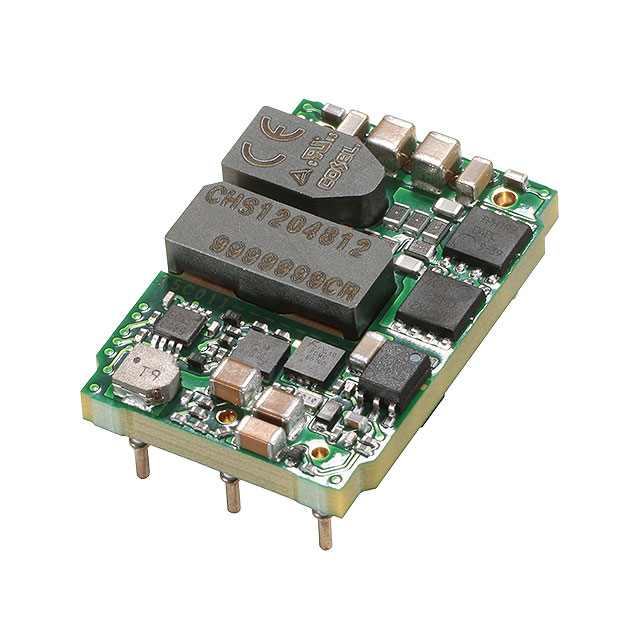

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CHS120483R3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CHS120483R3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CHS120483R3 |
|---|---|
| Manufacturer | Cosel |
| Description | DC DC CONVERTER 3.3V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $25.199 | $25.002 | $24.805 | |||
| 25 pcs | 50 pcs | 100 pcs | |||
| $24.018 | $22.836 | $21.261 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CHS120483R3 | Manufacturer | Cosel |
|---|---|---|---|
| Description | DC DC CONVERTER 3.3V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1441 pcs | Data sheet | CHS Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 3.3V |
| Voltage - Isolation | 2.25kV | Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 76V | Type | Isolated Module |
| Supplier Device Package | - | Size / Dimension | 1.30" L x 0.90" W x 0.41" H (33.0mm x 22.9mm x 10.5mm) |
| Series | CHS | Packaging | - |
| Package / Case | 8-DIP Module | Other Names | 1776-1038 |
| Operating Temperature | -40°C ~ 85°C (With Derating) | Number of Outputs | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, OCP, OTP, OVP | Efficiency | 92.5% |
| Detailed Description | Isolated Module DC DC Converter 1 Output 3.3V 30A 36V - 76V Input | Current - Output (Max) | 30A |
| Applications | ITE (Commercial) |
