CHS-10TB

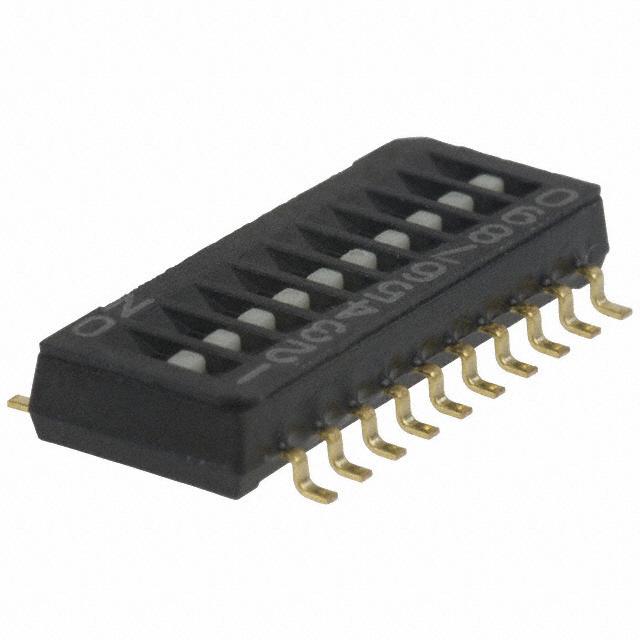

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CHS-10TB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CHS-10TB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CHS-10TB |
|---|---|
| Manufacturer | Copal Electronics |
| Description | SWITCH SLIDE DIP SPST 100MA 6V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 5000 pcs | ||
|---|---|---|---|---|---|
| $0.685 | $0.588 | $0.539 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CHS-10TB | Manufacturer | Copal Electronics |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 6V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59644 pcs | Data sheet | CHS Series Datasheet |
| Category | Switches | Washable | Yes |
| Voltage Rating | 6VDC | Termination Style | Gull Wing |
| Series | CHS | Pitch | 0.050" (1.27mm), Half |
| Packaging | Tape & Reel (TR) | Other Names | 563-1014-2 CHS10TB |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 10 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | - | Manufacturer Standard Lead Time | 11 Weeks |
| Length | 0.563" (14.30mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.098" (2.50mm) | Features | Tape Seal |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC |
| Current Rating | 100mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyphenylene Sulfide (PPS) | Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
