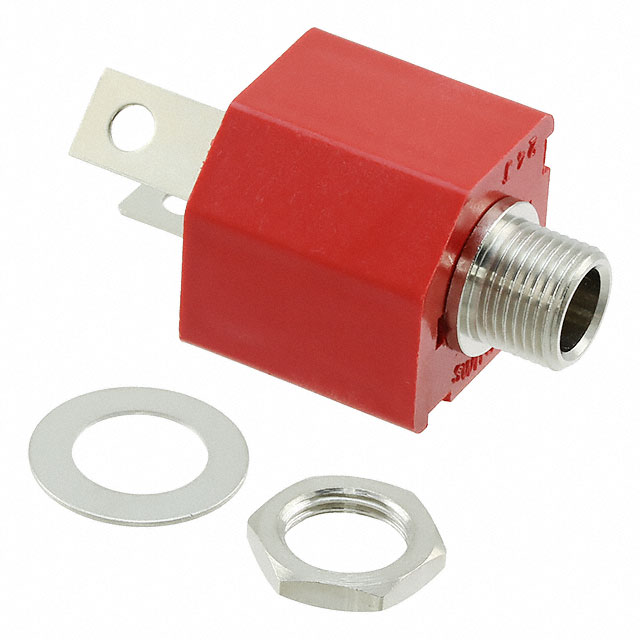

Z15J
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy Z15J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy Z15J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | Z15J |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK MONO 6.35MM PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.55 | $1.252 | $1.148 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $1.095 | $1.043 | $1.019 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | Z15J | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK MONO 6.35MM PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36918 pcs | Data sheet | Jack Series |
| Category | Connectors, Interconnects | Voltage - Rated | 25VDC |
| Thread Size | - | Termination | Solder Eyelet(s) |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | Bulk | Other Names | SC2046 Z15J-ND |
| Operating Temperature | -20°C ~ 65°C | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer | Housing Material | Thermoplastic, Glass Filled |
| Gender | Female | Features | - |
| Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder Eyelet(s) | Current Rating | 15A |
| Contact Material - Plating | Nickel | Contact Material | Copper Alloy |
| Connector Type | Phone Jack | Cable Opening | - |
| Body Material | Copper Alloy | Body Color | Silver, Red |
| Actual Diameter | 0.253" (6.43mm) |
