TR1PC

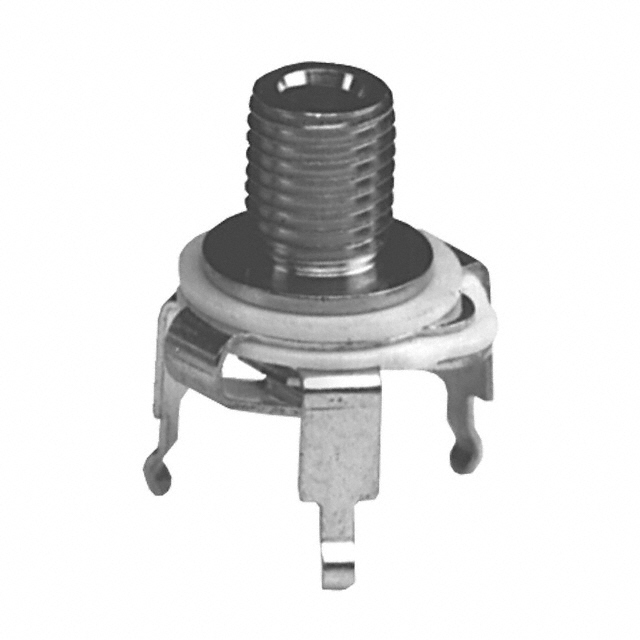

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TR1PC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TR1PC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TR1PC |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK MONO 2.46MM PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $3.18 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TR1PC | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK MONO 2.46MM PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9547 pcs | Data sheet | TR1PC Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | #10-48 | Termination | Solder |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | Micro-Jax® | Panel Hole Size | 0.190" (4.83mm) |
| Packaging | Bulk | Operating Temperature | -20°C ~ 65°C |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Panel Mount, Through Hole |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 2.46mm ID (0.097") |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer | Housing Material | - |
| Gender | Female | Features | Mounting Hardware, Thread Lock |
| Detailed Description | 2.46mm ID (0.097") Phone Jack Mono Connector Solder | Contact Material - Plating | Tin |
| Contact Material | Nickel Silver Alloy | Connector Type | Phone Jack |
| Cable Opening | - | Body Material | Brass |
| Body Color | Silver | Actual Diameter | 0.100" (2.54mm) |
