TR1823PMS1NB

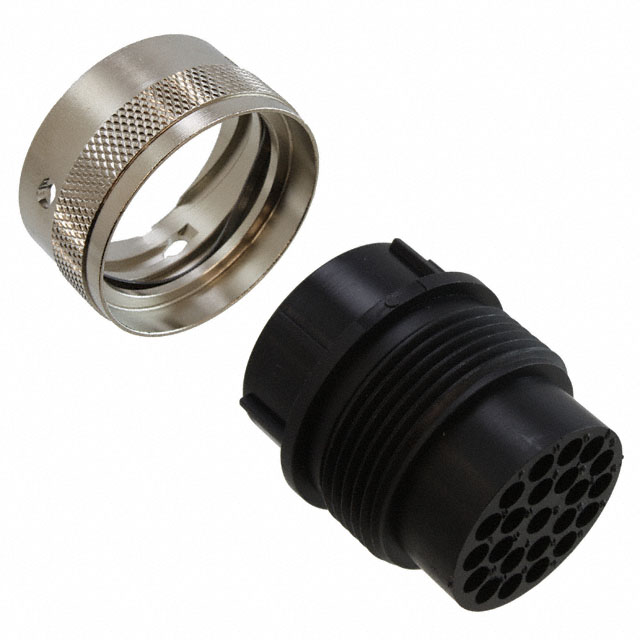

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TR1823PMS1NB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TR1823PMS1NB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TR1823PMS1NB |
|---|---|
| Manufacturer | ITT Cannon, LLC |
| Description | CONN PLUG INLINE 23POS PIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $4.715 | $4.286 | $3.643 | |||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $3.322 | $3.107 | $2.85 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TR1823PMS1NB | Manufacturer | ITT Cannon, LLC |
|---|---|---|---|
| Description | CONN PLUG INLINE 23POS PIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10555 pcs | Data sheet | Trident Series Catalog |
| Category | Connectors, Interconnects | Wire Gauge or Range - AWG | - |
| Usage | Unshielded | Type Attributes | - |
| Type | For Male Pins | Stacking Direction | Crimp and Solder Cup |
| Shield Termination | Circular | Shell Material, Finish | - |
| Shell Finish | Polyamide (PA), Nylon | Series | Trident Ringlock (TR) |
| RoHS Status | Bulk | Plug/Mating Plug Diameter | Black |
| Other Names | 1003-1367 192990-1320 192990-1320-ND 1929901320 I192990-1320 I192990-1320-ND |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions | 23 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 7 Weeks | Manufacturer Part Number | TR1823PMS1NB |
| Large Diameter Supplied | 18-23 | Insert Material | Copper Alloy, Nickel |
| Includes | - | Features | Coupling Nut |
| Expanded Description | 23 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut | Description | CONN PLUG INLINE 23POS PIN |
| Current - Max/Contact | Detent Lock | Coupling Nut Material, Plating | 1.350" (34.29mm) |
| Coupling Nut Diameter | - | Contact Shape | - |
| Contact Material | Keyed | Connector Type | Plug Housing |
| Body Material | - |
