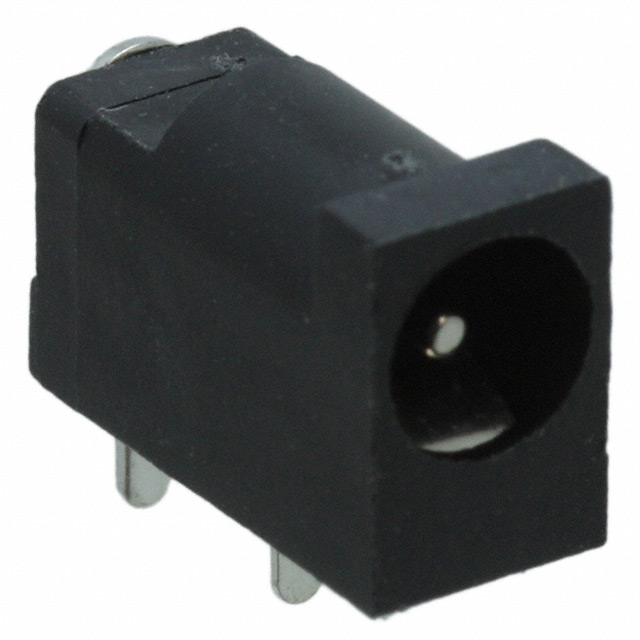

RAPC742X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RAPC742X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RAPC742X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RAPC742X |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN POWER JACK SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.495 | $0.377 | $0.354 | $0.338 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.323 | $0.292 | $0.269 | $0.25 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RAPC742X | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN POWER JACK SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75133 pcs | Data sheet | Jack SchematicsRAPC742X Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | RAPC742X-ND SC1574 |
| Operating Temperature | - | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Mating Length/Depth | - | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | - |
| Includes | - | Housing Material | Thermoplastic |
| Gender | Male | Features | - |
| Detailed Description | Power Barrel Connector Jack Through Hole, Right Angle | Current Rating | 3A |
| Contact Material - Plating | Tin | Contact Material | Copper Alloy |
| Connector Type | Jack | Body Material | - |
| Body Color | Black | Actual Diameter | 0.039" (1.00mm ID), 0.177" (4.50mm OD) |
