RA49C14B

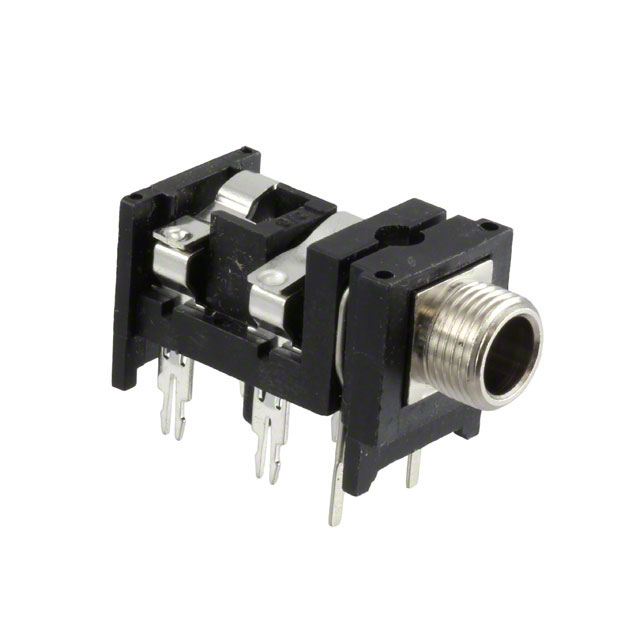

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RA49C14B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RA49C14B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RA49C14B |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK STEREO 6.35MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.925 | $1.557 | $1.428 | $1.363 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.298 | $1.136 | $1.103 | $1.055 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RA49C14B | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK STEREO 6.35MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36233 pcs | Data sheet | RA49C Series Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | 3/8"-32 | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | RA Jax® | Panel Hole Size | - |
| Packaging | Bulk | Other Names | RA49C14B-ND SC1541 |
| Operating Temperature | - | Number of Positions/Contacts | 3 Conductors, 5 Contacts |
| Mounting Type | Through Hole, Right Angle | Mating Length/Depth | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Two Switches | Insulation Color | - |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone | Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material | Thermoplastic, Polyester | Gender | Female |
| Features | Board Guide | Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder |
| Contact Material - Plating | Silver | Contact Material | Copper Alloy |
| Connector Type | Phone Jack | Cable Opening | - |
| Body Material | Brass | Body Color | Silver, Black |
| Actual Diameter | 0.253" (6.43mm) |
