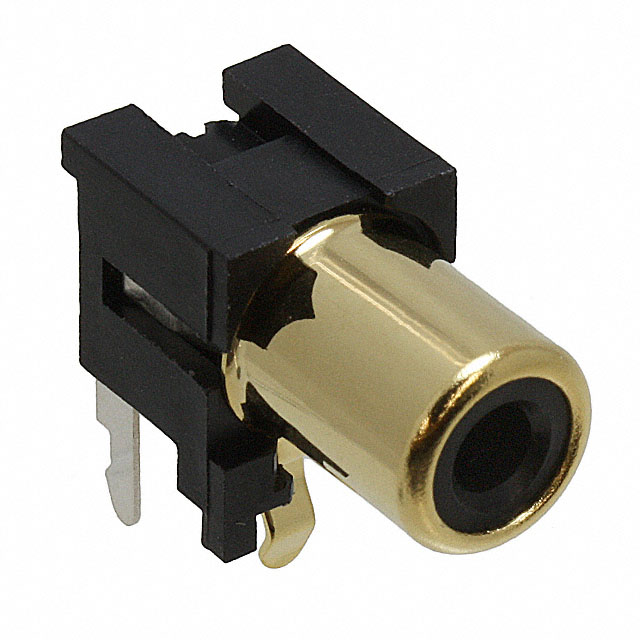

PJRAN1X1U01AUX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJRAN1X1U01AUX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJRAN1X1U01AUX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJRAN1X1U01AUX |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCA JACK MONO 3.2MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.40 | $0.297 | $0.279 | $0.268 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.256 | $0.233 | $0.209 | $0.189 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJRAN1X1U01AUX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCA JACK MONO 3.2MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 114719 pcs | Data sheet | Jack SchematicsPJRAN1X1UX Series DrawingPJRA(N,S) Product Bulletin |
| Category | Connectors, Interconnects | Voltage - Rated | 34VAC/DC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | PJR | Panel Hole Size | - |
| Packaging | Bulk | Other Names | PJRAN1X1U01AU PJRAN1X1U01AU-ND PJRAN1X1U01AUX-ND SC1852 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Mating Length/Depth | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch | Insulation Color | Black |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) | Includes | - |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) | Gender | Female |
| Features | - | Detailed Description | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder |
| Current Rating | 2A | Contact Material - Plating | Gold |
| Contact Material | Copper Alloy | Connector Type | Phono (RCA) Jack |
| Cable Opening | - | Body Material | Copper Alloy |
| Body Color | Gold, Black | Actual Diameter | 0.134" (3.40mm ID), 0.328" (8.33mm OD) |
