PJRAN3X1U02X

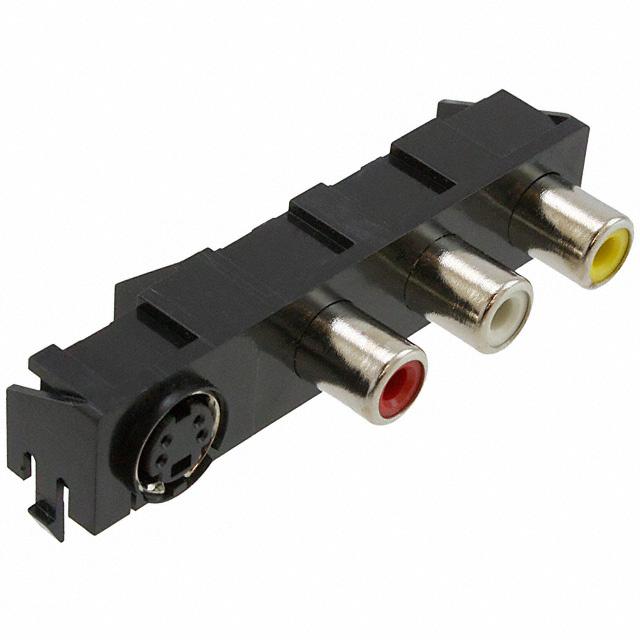

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJRAN3X1U02X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJRAN3X1U02X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJRAN3X1U02X |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCA JACK MONO 3.2MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.645 | $1.328 | $1.212 | $1.155 | $1.128 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PJRAN3X1U02X | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCA JACK MONO 3.2MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34495 pcs | Data sheet | Jack SchematicsPJRAN3X1U02X/AUXPJRAN3X1Uyy(X,AUX) Series DrawingPJRA Product Bulletin |
| Category | Connectors, Interconnects | Voltage - Rated | 34VAC/DC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | PJR | Panel Hole Size | - |
| Packaging | Bulk | Other Names | PJRAN3X1U02X-ND SC1997 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 3 Sets of 2 Conductors, 9 Contacts |
| Mounting Type | Through Hole, Right Angle | Mating Length/Depth | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch | Insulation Color | Red, White, Yellow |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) | Includes | - |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) | Gender | Female |
| Features | - | Detailed Description | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder |
| Current Rating | 2A | Contact Material - Plating | Tin |
| Contact Material | Copper Alloy | Connector Type | Phono (RCA) Jack |
| Cable Opening | - | Body Material | Copper Alloy |
| Body Color | Silver, Black | Actual Diameter | - |
