35RAPC4BH3

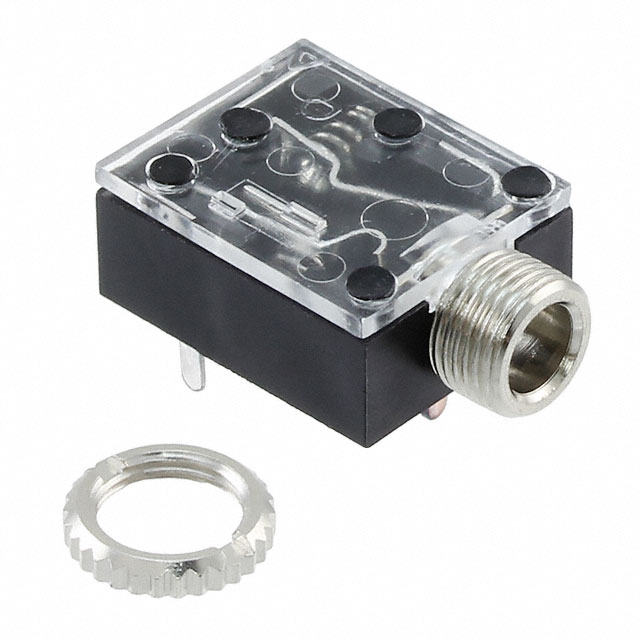

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 35RAPC4BH3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 35RAPC4BH3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 35RAPC4BH3 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK STEREO 3.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.543 | $0.499 | $0.47 | $0.456 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.435 | $0.428 | $0.419 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 35RAPC4BH3 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK STEREO 3.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86864 pcs | Data sheet | 35RAPCxxH3 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | 35 | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 35RAPC4BH3-ND SC1464 |
| Operating Temperature | - | Number of Positions/Contacts | 3 Conductors, 5 Contacts |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Two Switches |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Female | Features | Mounting Hardware, Thread Lock |
| Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder | Contact Material - Plating | Silver |
| Contact Material | Copper Alloy | Connector Type | Phone Jack |
| Cable Opening | - | Body Material | Brass |
| Body Color | Silver, Black | Actual Diameter | 0.142" (3.60mm) |
