35RAPC2BH3

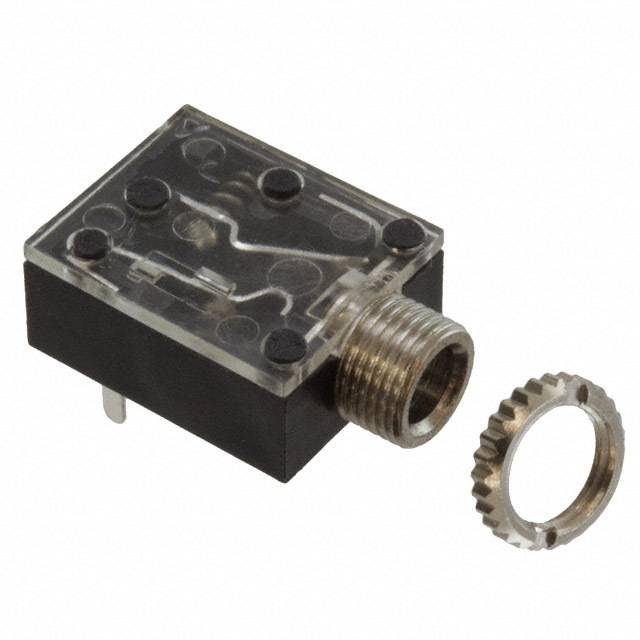

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 35RAPC2BH3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 35RAPC2BH3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 35RAPC2BH3 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK STEREO 3.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.814 | $0.622 | $0.584 | $0.559 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.533 | $0.483 | $0.444 | $0.413 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 35RAPC2BH3 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK STEREO 3.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78410 pcs | Data sheet | 35RAPCxxH3 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | 35 | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 35RAPC2BH3-ND SC1465 |
| Operating Temperature | - | Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mating Length/Depth | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material | Polybutylene Terephthalate (PBT) | Gender | Female |
| Features | Mounting Hardware, Thread Lock | Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder |
| Contact Material - Plating | Silver | Contact Material | Copper Alloy |
| Connector Type | Phone Jack | Cable Opening | - |
| Body Material | Brass | Body Color | Silver, Black |
| Actual Diameter | 0.142" (3.60mm) |
