302W2CSXX56N40X

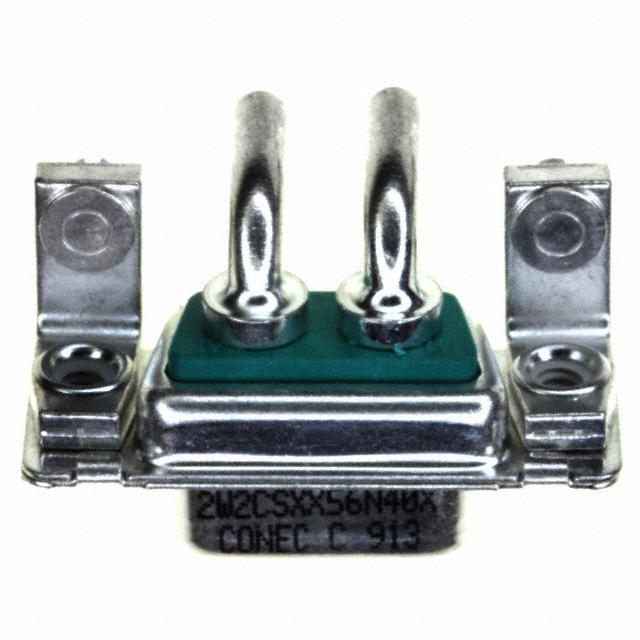

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 302W2CSXX56N40X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 302W2CSXX56N40X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 302W2CSXX56N40X |
|---|---|
| Manufacturer | Conec |
| Description | CONN D-SUB RCPT 2POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $4.759 | $4.328 | $4.22 | $3.895 | ||
| 120 pcs | 270 pcs | 510 pcs | 1020 pcs | ||
| $3.679 | $3.354 | $3.138 | $2.878 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 302W2CSXX56N40X | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB RCPT 2POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11460 pcs | Data sheet | 302W2CSXX56N40X Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) - 2V2, 2W2C | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Tray |
| Other Names | 626-1096 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions | 2 (Power) |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock | Detailed Description | 2 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector |
| Current Rating | 20A | Contact Type | Power |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets and Male Pins | Connector Style | D-Sub, Combo |
| Color | Green | Backset Spacing | 0.459" (11.65mm) |
