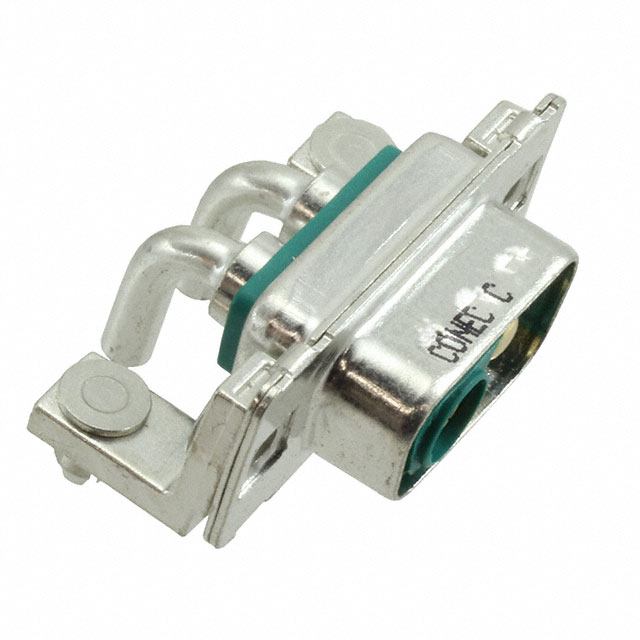

302W2CPXX56N40X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 302W2CPXX56N40X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 302W2CPXX56N40X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 302W2CPXX56N40X |
|---|---|
| Manufacturer | Conec |
| Description | CONN D-SUB PLUG 2POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.077 | $4.616 | $4.50 | $4.154 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.923 | $3.577 | $3.346 | $3.069 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 302W2CPXX56N40X | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB PLUG 2POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10577 pcs | Data sheet | 302W2CPXX56N40X Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) - 2V2, 2W2C | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Bulk |
| Other Names | 302W2CPXX56N40X-ND 626-1937 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions | 2 (Power) |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Grounding Indents, Mounting Brackets | Detailed Description | 2 (Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating | - | Contact Type | Power |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
| Color | Green | Backset Spacing | 0.459" (11.65mm) |
