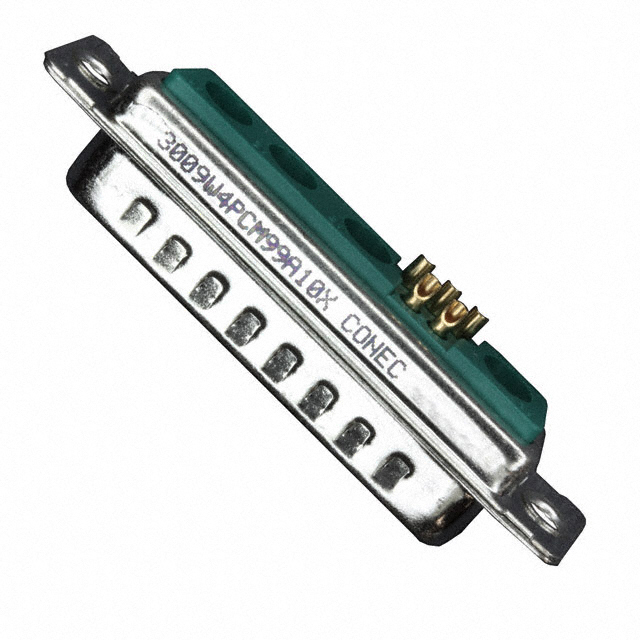

3009W4PCM99A10X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3009W4PCM99A10X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3009W4PCM99A10X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3009W4PCM99A10X |
|---|---|
| Manufacturer | Conec |
| Description | CONN DSUB PLUG 9POS STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.251 | $2.159 | $1.971 | $1.877 | $1.784 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.596 | $1.502 | $1.314 | $1.248 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3009W4PCM99A10X | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN DSUB PLUG 9POS STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28610 pcs | Data sheet | 3009W4PCM99A10X Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 20 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Tray |
| Other Names | 626-1118 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 9 (5 + 4 Coax or Power) |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents | Detailed Description | 9 (5 + 4 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating | - | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
| Color | Green | Backset Spacing | - |
