3009P-1-503

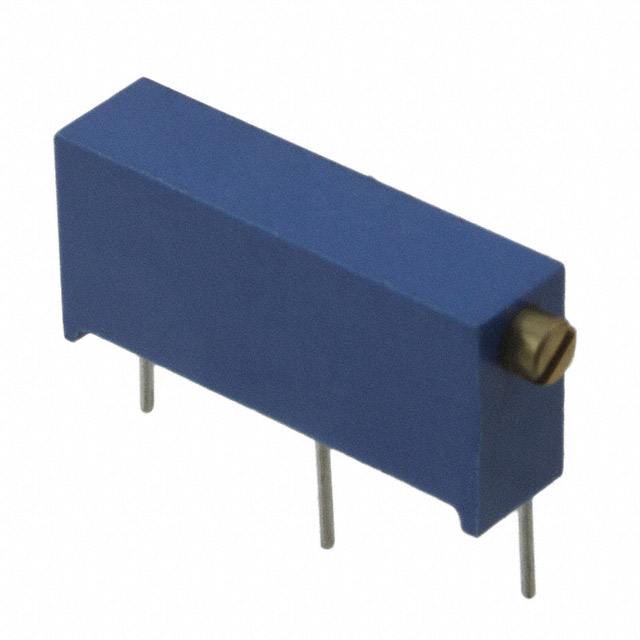

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3009P-1-503 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3009P-1-503 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3009P-1-503 |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | TRIMMER 50KOHM 0.75W PC PIN SIDE |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 200 pcs | ||||
|---|---|---|---|---|---|
| $1.218 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3009P-1-503 | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | TRIMMER 50KOHM 0.75W PC PIN SIDE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 28325 pcs | Data sheet | 3009 Series Datasheet |
| Category | Potentiometers, Variable Resistors | Tolerance | ±10% |
| Termination Style | PC Pins | Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | Rectangular- 0.354" x 0.190" Face x 0.750" L (8.98mm x 4.83mm x 19.05mm) | Series | Trimpot® 3009 - Sealed |
| Resistive Material | Cermet | Resistance | 50 kOhms |
| Power (Watts) | 0.75W, 3/4W | Packaging | Tube |
| Other Names | 3009P-503 3009P1503 |
Number of Turns | 15 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Detailed Description | 50 kOhms 0.75W, 3/4W PC Pins Through Hole Trimmer Potentiometer Cermet 15 Turn Side Adjustment | Adjustment Type | Side Adjustment |
