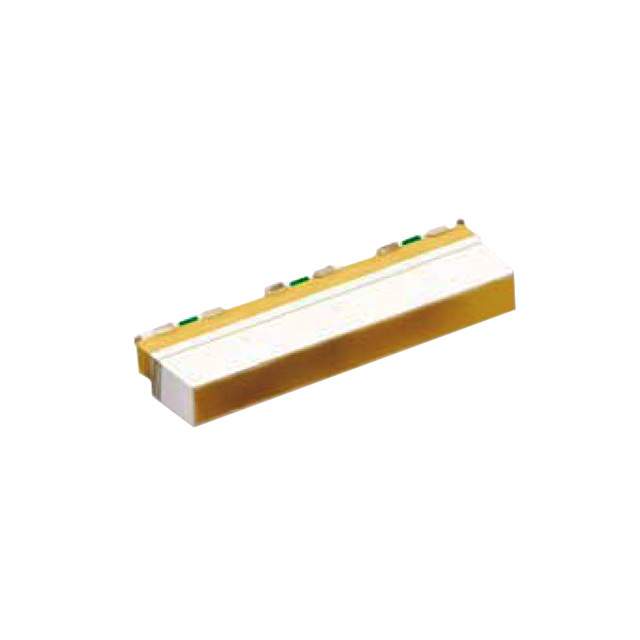

CL-426F-AA-SD-TS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CL-426F-AA-SD-TS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CL-426F-AA-SD-TS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CL-426F-AA-SD-TS |
|---|---|
| Manufacturer | Citizen Electronics Co., Ltd. |
| Description | LED RGB SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.136 | $0.133 | $0.128 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CL-426F-AA-SD-TS | Manufacturer | Citizen Electronics Co., Ltd. |
|---|---|---|---|
| Description | LED RGB SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 189459 pcs | Data sheet | CL-426~ |
| Category | Optoelectronics | Wavelength - Peak | - |
| Wavelength - Dominant | 628nm Red, 530nm Green, 470nm Blue | Voltage - Forward (Vf) (Typ) | 1.85V Red, 2.7V Green, 2.75V Blue |
| Viewing Angle | - | Supplier Device Package | - |
| Size / Dimension | 2.80mm L x 0.85mm W | Series | CL-426 |
| Packaging | Tape & Reel (TR) | Package / Case | 4-SMD, No Lead |
| Other Names | 1642-1512-2 CL-426F-AA-SD |
Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Millicandela Rating | 160mcd Red, 250mcd Green, 52mcd Blue |
| Manufacturer Standard Lead Time | 8 Weeks | Lens Transparency | - |
| Lens Style/Size | Rectangle with Flat Top, 2.80mm x 0.35mm | Lens Color | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 0.35mm |
| Features | - | Detailed Description | Red, Green, Blue (RGB) 628nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 1.85V Red, 2.7V Green, 2.75V Blue 4-SMD, No Lead |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue | Configuration | Common Anode |
| Color | Red, Green, Blue (RGB) |
