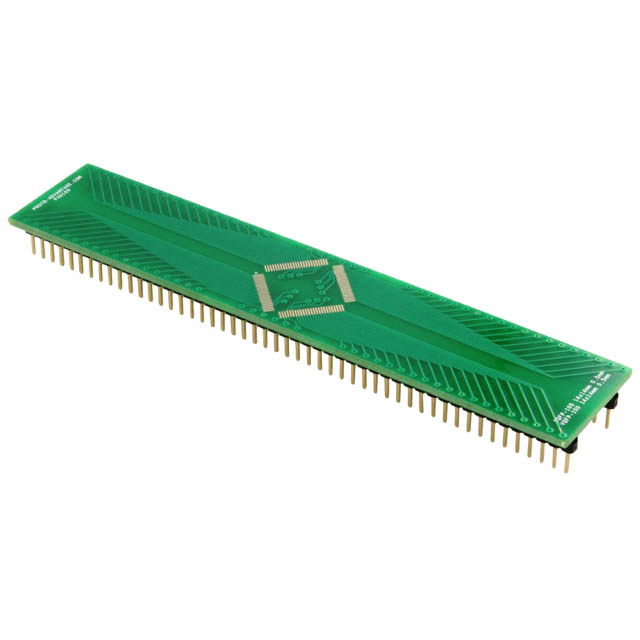

PA0109
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0109 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0109 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0109 |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | TQFP-100/VQFP-100 TO DIP-100 SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $6.872 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0109 | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | TQFP-100/VQFP-100 TO DIP-100 SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5660 pcs | Data sheet | Pin Assembly InstrPA0109Adapter Selection Guide |
| Category | Prototyping, Fabrication Products | Size / Dimension | 1.000" x 5.000" (25.40mm x 127.00mm) |
| Series | Proto-Advantage | Proto Board Type | SMD to DIP |
| Pitch | 0.020" (0.50mm) | Package Accepted | TQFP, VQFP |
| Number of Positions | 100 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material | FR4 Epoxy Glass | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Board Thickness | 0.062" (1.57mm) 1/16" |
