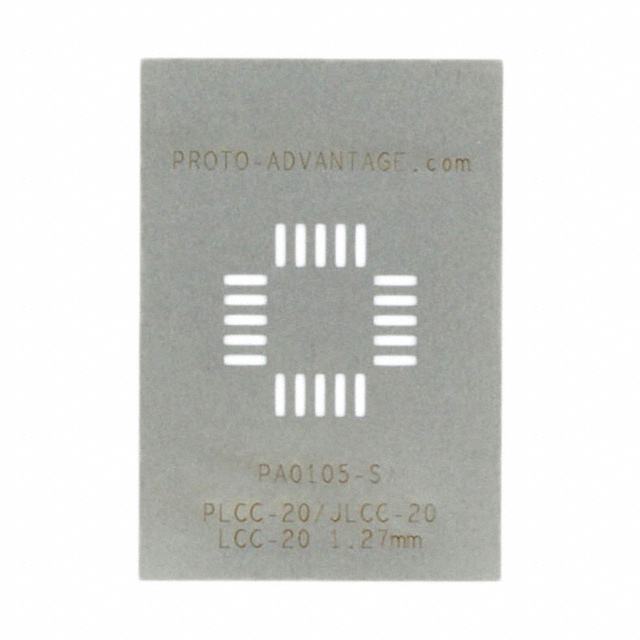

PA0105-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0105-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0105-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0105-S |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | PLCC-20/LCC-20/JLCC-20 STENCIL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.151 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0105-S | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | PLCC-20/LCC-20/JLCC-20 STENCIL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7311 pcs | Data sheet | Stencil Selection GuildePA0105-S DatasheetCircuit Assembly Instr |
| Category | Soldering, Desoldering, Rework Products | Type | PLCC/JLCC |
| Thickness | 0.0040" (0.102mm) | Thermal Center Pad | - |
| Series | Proto-Advantage | Pitch | 0.050" (1.27mm) |
| Outer Dimension | 0.900" L x 1.300" W (22.86mm x 33.02mm) | Number of Positions | 20 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | Stainless Steel |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inner Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
