Home > Products > Prototyping, Fabrication Products > Adapter, Breakout Boards > IPC0053

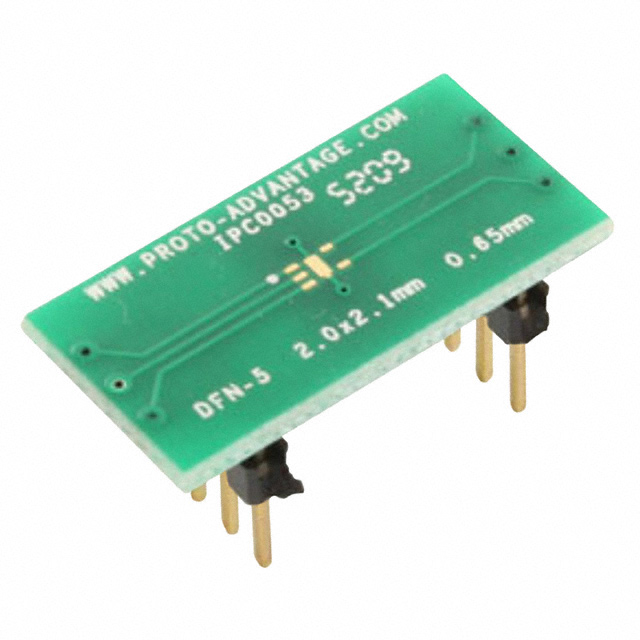

IPC0053

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPC0053 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	IPC0053
Manufacturer	Chip Quik, Inc.
Description	DFN-5 TO DIP-10 SMT ADAPTER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 19750 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$1.534

Product parameter
Data sheet

Product parameter

Part Number	IPC0053	Manufacturer	Chip Quik, Inc.
Description	DFN-5 TO DIP-10 SMT ADAPTER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19750 pcs	Data sheet	Pin Assembly Instr IPC0053 Adapter Selection Guide
Category	Prototyping, Fabrication Products	Size / Dimension	1.000" x 0.500" (25.40mm x 12.70mm)
Series	Proto-Advantage	Proto Board Type	SMD to DIP
Pitch	0.026" (0.65mm)	Package Accepted	DFN
Number of Positions	5	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material	FR4 Epoxy Glass	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Board Thickness	0.062" (1.57mm) 1/16"
