Home > Products > Prototyping, Fabrication Products > Adapter, Breakout Boards > IPC0052

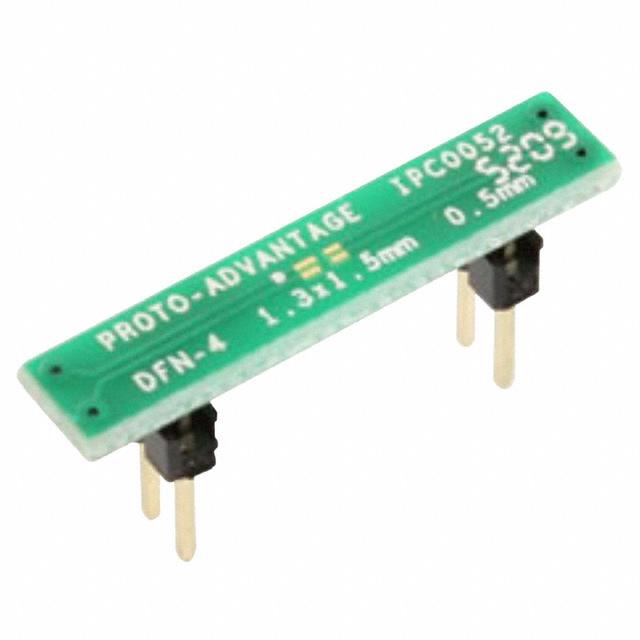

IPC0052

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPC0052 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	IPC0052
Manufacturer	Chip Quik, Inc.
Description	DFN-4 TO DIP-4 SMT ADAPTER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 28194 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$1.341

Product parameter
Data sheet

Product parameter

Part Number	IPC0052	Manufacturer	Chip Quik, Inc.
Description	DFN-4 TO DIP-4 SMT ADAPTER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28194 pcs	Data sheet	IPC0052 Pin Assembly Instr Adapter Selection Guide
Category	Prototyping, Fabrication Products	Size / Dimension	1.000" x 0.200" (25.40mm x 5.08mm)
Series	Proto-Advantage	Proto Board Type	SMD to DIP
Pitch	0.020" (0.50mm)	Package Accepted	DFN
Number of Positions	4	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material	FR4 Epoxy Glass	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Board Thickness	0.062" (1.57mm) 1/16"
