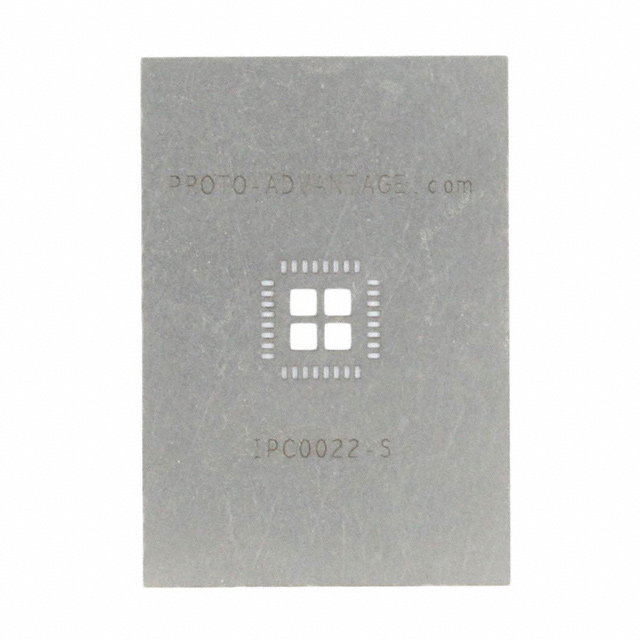

IPC0022-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPC0022-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPC0022-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPC0022-S |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | QFN-32 STENCIL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.17 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPC0022-S | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | QFN-32 STENCIL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7880 pcs | Data sheet | Stencil Selection GuildeCircuit Assembly InstrIPC0022-S |
| Category | Soldering, Desoldering, Rework Products | Type | QFN/LFCSP |
| Thickness | 0.0040" (0.102mm) | Thermal Center Pad | 0.185" L x 0.185" W (4.70mm x 4.70mm) |
| Series | Proto-Advantage | Pitch | 0.026" (0.65mm) |
| Outer Dimension | 0.900" L x 1.300" W (22.86mm x 33.02mm) | Number of Positions | 32 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | Stainless Steel |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inner Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
