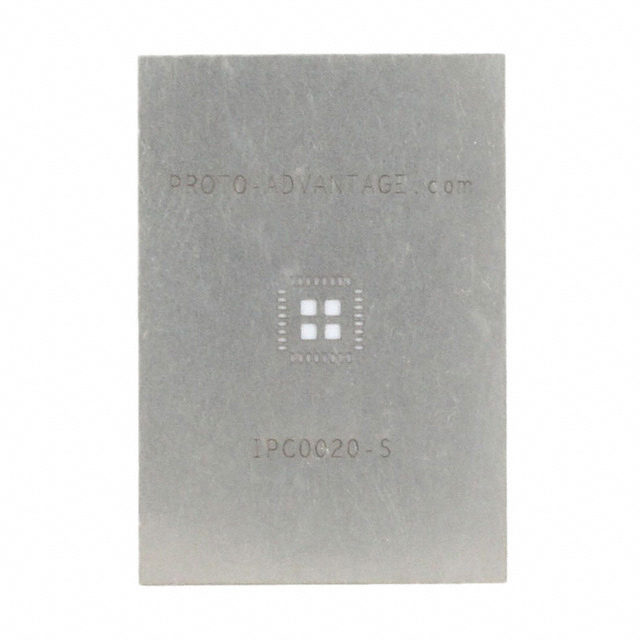

IPC0020-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPC0020-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPC0020-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPC0020-S |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | STENCIL 5X5 MM .5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.401 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPC0020-S | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | STENCIL 5X5 MM .5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7799 pcs | Data sheet | Stencil Selection GuildeIPC0020-SCircuit Assembly Instr |
| Category | Soldering, Desoldering, Rework Products | Type | QFN/LFCSP |
| Thickness | 0.0040" (0.102mm) | Thermal Center Pad | 0.122" L x 0.122" W (3.10mm x 3.10mm) |
| Series | Proto-Advantage | Pitch | 0.020" (0.50mm) |
| Outer Dimension | 0.900" L x 1.300" W (22.86mm x 33.02mm) | Other Names | IPC0020S |
| Number of Positions | 32 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material | Stainless Steel | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inner Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
