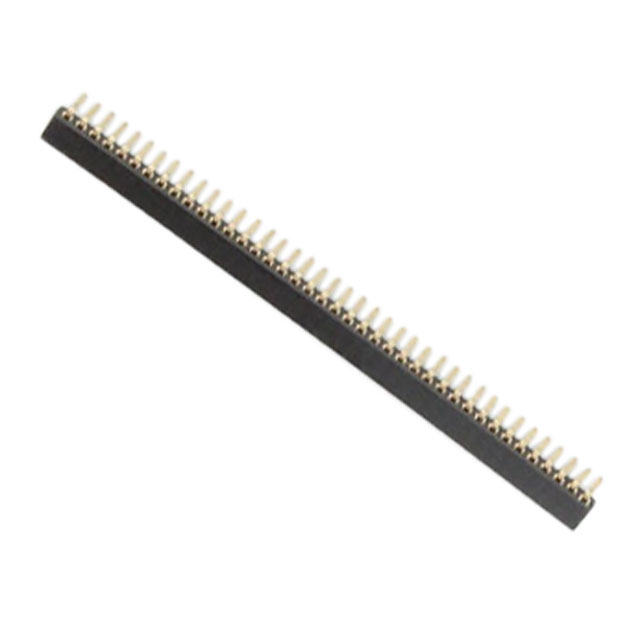

HDR100MET40F-G-RA-TH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDR100MET40F-G-RA-TH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDR100MET40F-G-RA-TH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDR100MET40F-G-RA-TH |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | 1.00 MM 40 PIN RIGHT ANGLE FEMAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.567 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDR100MET40F-G-RA-TH | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | 1.00 MM 40 PIN RIGHT ANGLE FEMAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68949 pcs | Data sheet | HDR100MET40F-G-RA-TH |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | Proto-Advantage | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 40 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | - | Insulation Height | 0.059" (1.50mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 40 Position Header Connector Through Hole, Right Angle | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | - | Contact Length - Post | 0.094" (2.40mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
