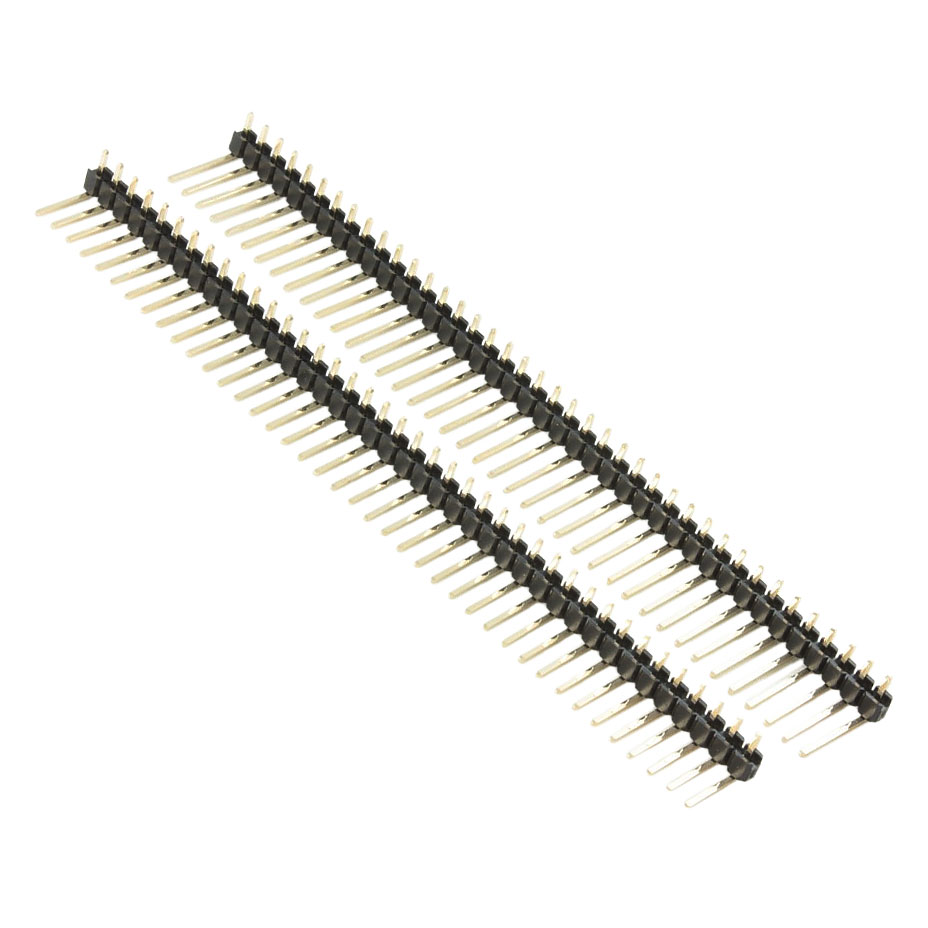

HDR-ETD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDR-ETD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDR-ETD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDR-ETD |
|---|---|
| Manufacturer | Chip Quik, Inc. |
| Description | 0.1" 40 PIN HEADER PAIR FOR PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.581 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDR-ETD | Manufacturer | Chip Quik, Inc. |
|---|---|---|---|
| Description | 0.1" 40 PIN HEADER PAIR FOR PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56916 pcs | Data sheet | HDR-ETD |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Wire Wrap | Style | Board to Board |
| Shrouding | Unshrouded | Series | Proto-Advantage |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 40, 40 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | - | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 40, 40 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | - | Contact Length - Post | - |
| Contact Length - Mating | 0.118" (3.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
