Home > Products > Switches > Rocker Switches > LRA22H2BBBNN

LRA22H2BBBNN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LRA22H2BBBNN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LRA22H2BBBNN
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER SPST 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 72706 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.273

Product parameter
Data sheet

Product parameter

Part Number	LRA22H2BBBNN	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER SPST 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	72706 pcs	Data sheet	LR Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Off
Series	LR	Panel Cutout Dimensions	Rectangular - 19.10mm x 12.90mm
Packaging	Bulk	Other Names	CH763
Operating Temperature	-20°C ~ 65°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	6,000 Cycles	Detailed Description	Rocker Switch SPST 10A (AC) 125V Panel Mount, Snap-In
Current Rating	10A (AC)	Color - Actuator/Cap	Black
Circuit	SPST	Actuator Type	Concave (Curved)
Actuator Marking	No Marking

Related products
Related news

Related products

LRA32H2FBRLN Image

Part#:~~LRA32H2FBRLN~~
Manufacturers:~~Cherry Switches (ZF Electronics)~~
Description:~~SWITCH ROCKER DPST 10A 125V~~
In Stock:~~58588~~

~~$0.32/pcs~~RFQ

LRA22H2DBBNN Image

Part#:~~LRA22H2DBBNN~~
Manufacturers:~~Cherry Switches (ZF Electronics)~~
Description:~~SWITCH ROCKER SPST 10A 125V~~
In Stock:~~97869~~

~~$0.241/pcs~~RFQ

LRA32H2DBBNN Image

Part#:~~LRA32H2DBBNN~~
Manufacturers:~~Cherry Switches (ZF Electronics)~~
Description:~~SWITCH ROCKER DPST 10A 125V~~
In Stock:~~80915~~

~~$0.276/pcs~~RFQ

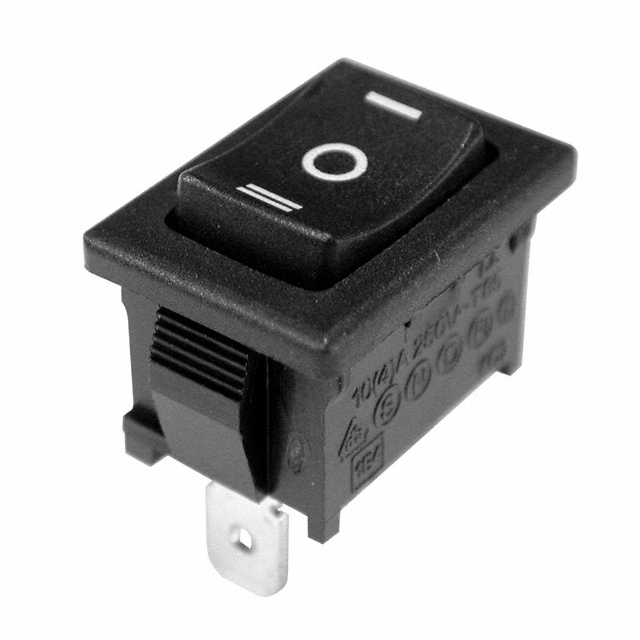

LRA22H2BBRLN Image
