Home > Products > Switches > Rocker Switches > KDH3ALA2RBB

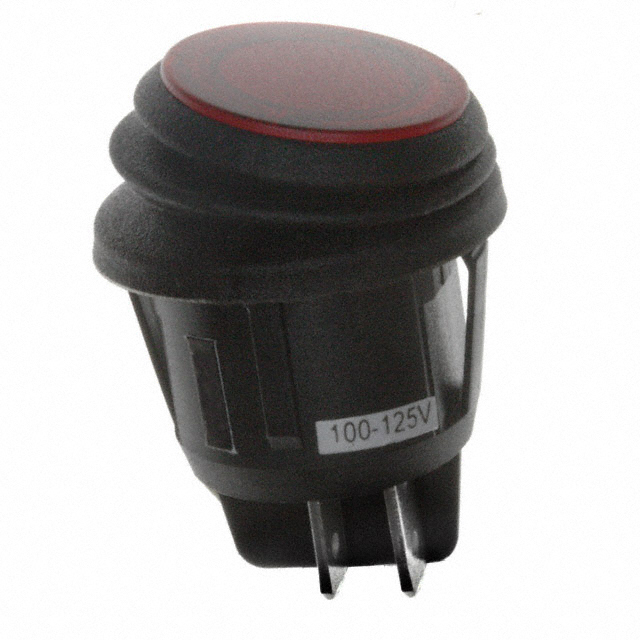

KDH3ALA2RBB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KDH3ALA2RBB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	KDH3ALA2RBB
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER DPST 16A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 26980 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.727	$1.687	$1.607	$1.527
	$1.446	$1.406	$1.366	$1.205

Product parameter
Data sheet

Product parameter

Part Number	KDH3ALA2RBB	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER DPST 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26980 pcs	Data sheet	KD Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.187" (4.7mm)
Switch Function	On-Off	Series	KD
Panel Cutout Dimensions	Circular - 20.00mm Dia	Packaging	Bulk
Other Names	CH939	Operating Temperature	-25°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP65 - Dust Tight, Water Resistant
Illumination Voltage (Nominal)	110 VAC	Illumination Type, Color	Neon, Red
Features	-	Electrical Life	6,000 Cycles
Detailed Description	Rocker Switch DPST 16A (AC), 10A (DC) 125V Panel Mount, Snap-In	Current Rating	16A (AC), 10A (DC)
Color - Actuator/Cap	Red	Circuit	DPST
Actuator Type	Round - Illuminated	Actuator Marking	No Marking
