Home > Products > Switches > Snap Action, Limit Switches > E14-00H

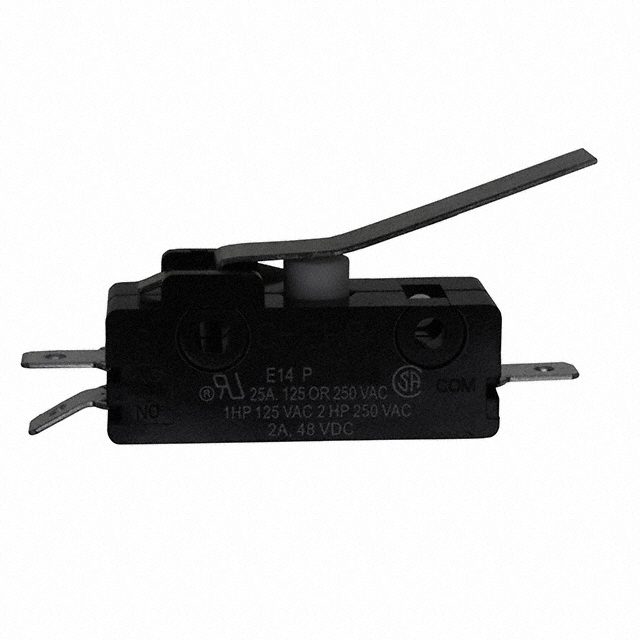

E14-00H

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy E14-00H with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	E14-00H
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 25A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 30243 pcs
Reference Price (In US Dollars)	1344 pcs
Reference Price (In US Dollars)	$1.291

Product parameter
Data sheet

Product parameter

Part Number	E14-00H	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 25A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30243 pcs	Data sheet	E13,14, G13 Series Datasheet
Category	Switches	Voltage Rating - DC	48V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-Mom	Series	E
Release Force	-	Pretravel	0.310" (7.9mm)
Packaging	Bulk	Overtravel	0.105" (2.67mm)
Other Names	0E14-00H 0E14-00H0 0E1400H0 0E1400HO CH316 E14-00H0	Operating Temperature	-40°C ~ 105°C
Operating Position	0.468" (11.9mm)	Operating Force	285gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	6,000 Cycles
Differential Travel	0.050" (1.3mm)	Current Rating	25A (AC), 2A (DC)
Circuit	SPDT	Actuator Type	Lever, Straight
