Home > Products > Switches > Snap Action, Limit Switches > DG23-B3RA

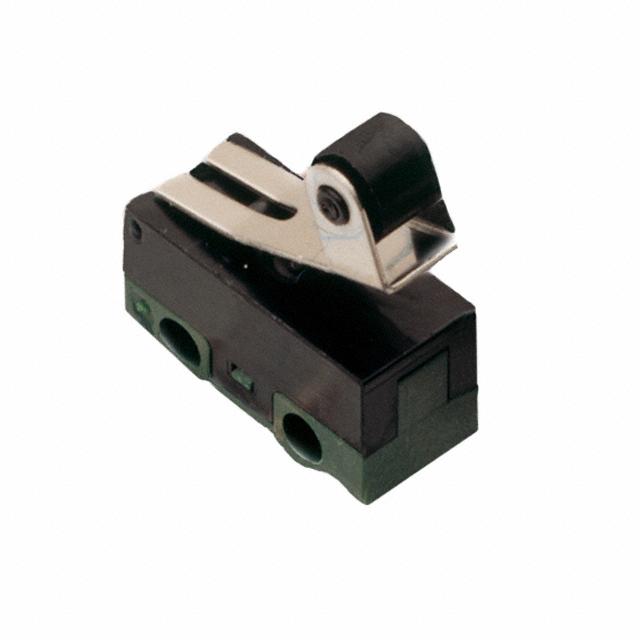

DG23-B3RA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DG23-B3RA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DG23-B3RA
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 50MA 30V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 57430 pcs
Reference Price (In US Dollars)	2760 pcs
Reference Price (In US Dollars)	$0.686

Product parameter
Data sheet

Product parameter

Part Number	DG23-B3RA	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 50MA 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	57430 pcs	Data sheet	DG Series
Category	Switches	Voltage Rating - DC	30V
Termination Style	PC Pin	Switch Function	On-Mom
Series	DG	Release Force	-
Pretravel	0.060" (1.5mm)	Packaging	Bulk
Overtravel	0.022" (0.55mm)	Other Names	CH625 DG23B3RA DG2C-B3RA
Operating Temperature	-25°C ~ 85°C	Operating Position	0.488" (12.4mm)
Operating Force	60gf	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP40	Features	-
Electrical Life	200,000 Cycles	Differential Travel	0.020" (0.5mm)
Current Rating	50mA (DC)	Circuit	SPDT
Actuator Type	Lever, Roller
