DG23-B2LA

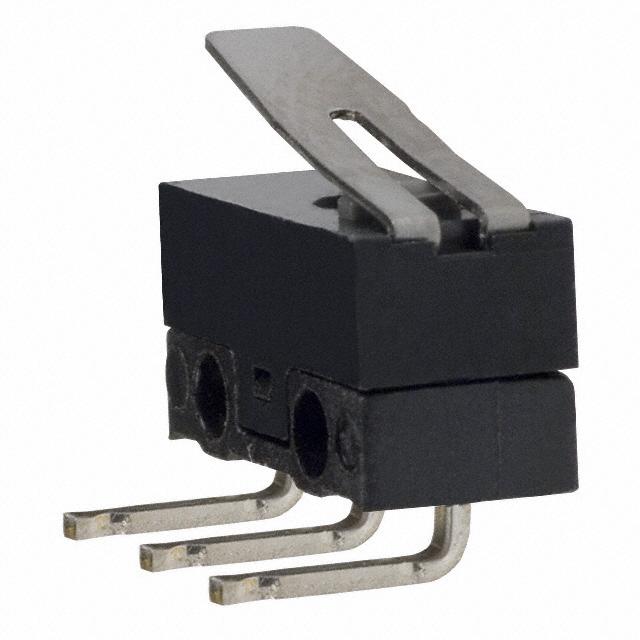

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DG23-B2LA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DG23-B2LA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DG23-B2LA |
|---|---|
| Manufacturer | Cherry Switches (ZF Electronics) |
| Description | SWITCH SNAP ACTION SPDT 50MA 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.868 | $0.802 | $0.752 | $0.735 | $0.585 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.552 | $0.518 | $0.485 | $0.451 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DG23-B2LA | Manufacturer | Cherry Switches (ZF Electronics) |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 50MA 30V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70673 pcs | Data sheet | DG Series |
| Category | Switches | Voltage Rating - DC | 30V |
| Termination Style | PC Pin | Switch Function | On-Mom |
| Series | DG | Release Force | - |
| Pretravel | 0.071" (1.8mm) | Packaging | Bulk |
| Overtravel | 0.022" (0.55mm) | Other Names | CH621 DG23-B2LA-ND DG23B2LA DG2C-B2LA Q1160639 |
| Operating Temperature | -25°C ~ 85°C | Operating Position | 0.268" (6.8mm) |
| Operating Force | 45gf | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP40 | Features | - |
| Electrical Life | 200,000 Cycles | Differential Travel | 0.020" (0.5mm) |
| Current Rating | 50mA (DC) | Circuit | SPDT |
| Actuator Type | Lever, Straight |
