Home > Products > Sensors, Transducers > Position Sensors - Angle, Linear Position Measurin > CU103603

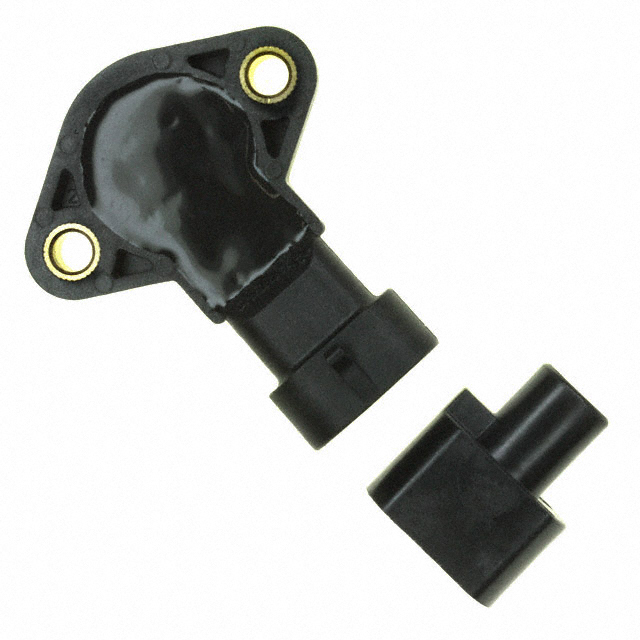

CU103603

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CU103603 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CU103603
Manufacturer	Cherry Switches (ZF Electronics)
Description	SENSOR ANGLE 45DEG CONNECTOR
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2664 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$12.991

Product parameter
Data sheet

Product parameter

Part Number	CU103603	Manufacturer	Cherry Switches (ZF Electronics)
Description	SENSOR ANGLE 45DEG CONNECTOR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2664 pcs	Data sheet	AS500106 Series Datasheet AN8 Series Datasheet
Category	Sensors, Transducers	Voltage - Supply	5V
Termination Style	Connector	Technology	Hall Effect
Supplier Device Package	-	Series	-
Rotation Angle - Electrical, Mechanical	0° ~ 45°, Continuous	Resistance Tolerance	-
Packaging	Box	Package / Case	Module
Output Signal	Clockwise Increase	Output	Analog Voltage
Other Names	CH928 CU103603-ND	Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Linearity	±3.5%
Linear Range	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
For Measuring	Angle	Detailed Description	Hall Effect Sensor Angle External Magnet, Included Connector
Actuator Type	External Magnet, Included
